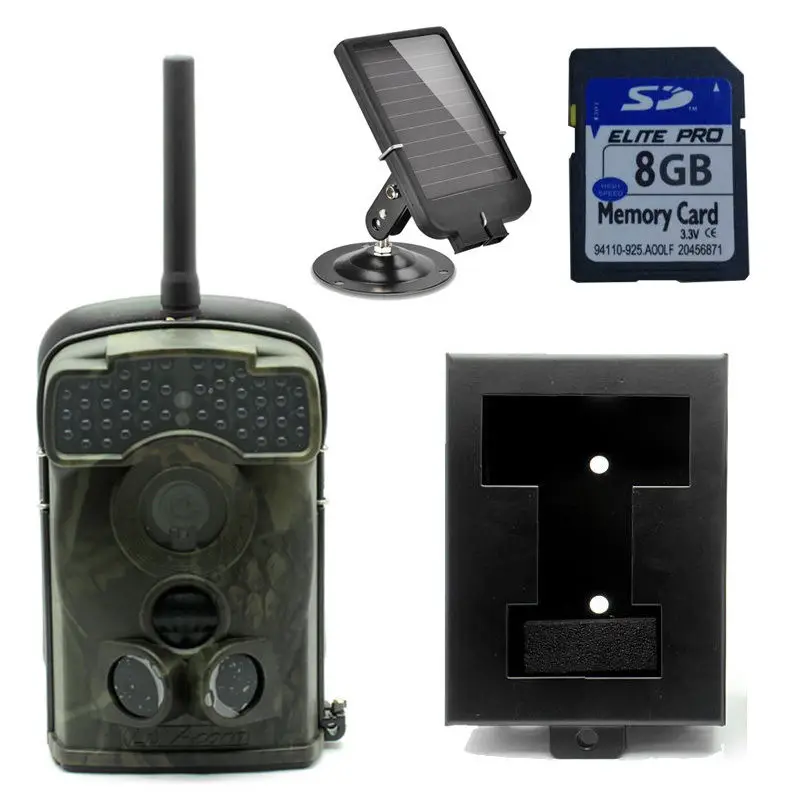

Ltl Acorn 5310MG 5310WMG Trail Hunting MMS GPRS Camera
+
6V Solar Battery
+
SD 8GB +
Metal Box

The most advanced 2014 model, 12 MegaPixels\940NM Trail Trail Scouting Farm Security camera with
mobile reporting functions straight to your mobile phones or to your emails.
When pictures are taken it sends SMS/MMS instantly to your mobile phones or JPEGS images straight to your allocated emails.
You can also send you a daily report of pictures to in SMS/MMS forms to your mobiles or emails.
 How SMS/MMS function works. Operates globally via GSM/GPRS network.
The Camera comes with Quad Band GSM support. A quad band GSM enabled cameras support pretty much most of 2G/GSM/GPRS networks in Worldwide from 850,900,1800, and 1900MHz
Works with any SIM cards, or any prepaid on 2G/GSM/GPRS networks, you can recharge any prepaid sim cards and turn this into a mobile device that sends you pictures instantly or in daily basics to your mobile or email addresses. This camera comes with basic simple instructions on how to set it up. Please note this camera doesn’t support 3G/NextG or 4G on 2100 Mhz (most areas do not use this) Works perfectly day or night with motion sensors.  Hot Spots
44 leds ,Better Night Video
720P Video.
12M pixel high-quality resolution
Infrared night vision 940nm LEDs for flash range as far as 65 feet
“Cam + Video” mode enables camera to take both picture and video at every trigger event
Quick trigger time (0.8 second)
Lockable and password protected
The device is 100% Original Device from Ltl Company,there is CE Report for the device .
LTL Produces 2 kinds of 5310MG MMS Camera
—5310MG and 5310WMG
What’s the difference between 2 Similar Camera?
The biggest one is that 5310MG Comes with 60° Lens,
5310WMG is wide 100 °,the vide is better.
Please be ware the cheap 5310MG,
We are selling is better 5310WMG.
2 Photos belows were taken at the same place .
Description
The Ltl Acorn 5310 is the third generation of our Ltl acorn scouting camera. With its highly sensitive Passive Infra-Red (PIR) sensor the camera
detects the sudden change of ambient temperature caused by moving game in a region of interest (ROI), triggers to take pictures/videos.
Features:
Programmable 5 or 12 megapixel high-quality resolution
No-glow infrared 940nm LEDs flash range as far as 65 feet.
In “Cam + Video” mode, camera takes both picture and video at every trigger event.
Ultra low standby power consumption. Extremely long in-field life (in standby mode, up to 6 months with 8xAA batteries)
Unique side Prep Sensor design provides wider sensing angle and enhances camera’s response speed
Perform in the most extreme temperatures from -22°F to 158°F
Compact size (5.5 x 3.5 x 2.5 inches). Perfect designed to deploy covertly impressively quick trigger time (0.8 second)
When timer setting on, the camera can be programmable to only work in specified period every day. This feature can work together with time lapse feature.
Backpack-looking tree grabber makes mounting and aiming a snap photos.
Built-in 2.25 inch TFT color display to review images and videos
Date, time, temperature and moon phase can be stamped in the pictures.
Lockable and password protected
Under time lapse setting, the camera automatically and constantly takes pictures/videos at specified interval.
This is very useful when observing plants flowering, birds building nests or when monitoring unattended properties such as parking lots.

Batteries and SD card are not included.
| Model |
Parameters |
ZSH0455 |
| Image Sensor |
5 Mega Pixels Color CMOS |
Yes |
| Max. Pixel Size |
4000×3000 |
Yes |
| Lens |
F=3.1;Auto IR-Cut,Wide 100° |
Yes |
| IR Flash |
65 Feet/20 Meters,44pcs LED |
Yes |
| LCD Screen |
48×35.69mm(2.36″); 480(RGB)*234DOT; 16.7M Color |
Yes |
| Operation Keypad |
6 Keys |
Yes |
| Memory |
SD Card (8MB ~16GB)not included |
Yes |
| Picture Size |
5MP = 2560×1920; |
And 12MP
=4000×3000 |
| Video Size |
1280*720:20fps |
Yes |
| PIR Sensitivity |
High/Normal/Low |
Yes |
| PIR Sensing Distance |
65ft/20m(Below 77°F/25°C at the Normal Level) |
Yes |
| Prep PIR Sensing Angle |
Left and right light beams form an angle of 100°; Each lens covers 10° |
Yes |
| Main PIR Sensing Angle |
35° |
Yes |
| Operation Mode |
Day/Night |
Yes |
| Trigger Time |
1 Second (When using the 2G SD card) |
Yes |
| Trigger Interval |
0sec. – 60min; Programmable |
Yes |
| Shooting Numbers |
1~3 |
Yes |
| Video Length |
1-60sec.; Programmable |
Yes |
| Camera + Video |
First take Picture then Video |
Yes |
| Playback Zoom In |
1~16 Times |
Yes |
| Time Stamp |
On /Off; Include serial no., temperature and moon phase |
Yes |
| Timer |
On /Off; Timer Set |
Yes |
| Password |
4-Digit Numbers |
Yes |
| Device Serial No. |
4 digits and 26 alphabets set by yourself |
Yes |
| Time Lapse |
1 Second ~ 24 Hours |
Yes |
| Power Supply |
4xAA; Expandable to 8xAA (With additional battery box) |
Yes |
| Stand-by Current |
0.4mA |
Yes |
| Stand-by Time |
3-6 Months(4xAA-8xAA) |
Yes |
| Auto Power Off |
Auto power off in 2 minutes while no keypad controlling |
Yes |
| Power Consumption |
150mA (+500mA when IR LED lights up) |
Yes |
| Low Battery Alarm |
4.2~4.3V |
Yes |
| Interface |
TV out (NTSC); USB; SD Card Slot; 6V DC External |
Yes |
| Mounting |
Strap; Tripod Nail |
Yes |
| Waterproof |
IP54 |
Yes |
| Operation Temperature |
-22~+158°F/-30 ~+70°C |
Yes |
| Operation Humidity |
5% ~ 95% |
Yes |
| Certificate |
FCC & CE & RoHS |
Yes |
What include in the package
- 1 X 5310A Digital Camera
- 1 X TV AV IN Cable
- 1 X USB Cable
1 X Strap
- 1 X Manual
- 1 X Warranty card
1 X SD 8GB
1X Solar Battery Kit
1 X Metal Box
-
