Hot Spots:
5M/12M/2M pixel high-quality resolution digital game camera
Infrared night vision LEDs No-glow model 940nm has 42ft (13m) flash range
“Cam + Video” mode enables camera to take both picture and video at every trigger event
Operates globally via GSM/GPRS network. Supports four bands: 850/900/1800/1900MHz
Captures high quality pictures and records HD video clips 1080P

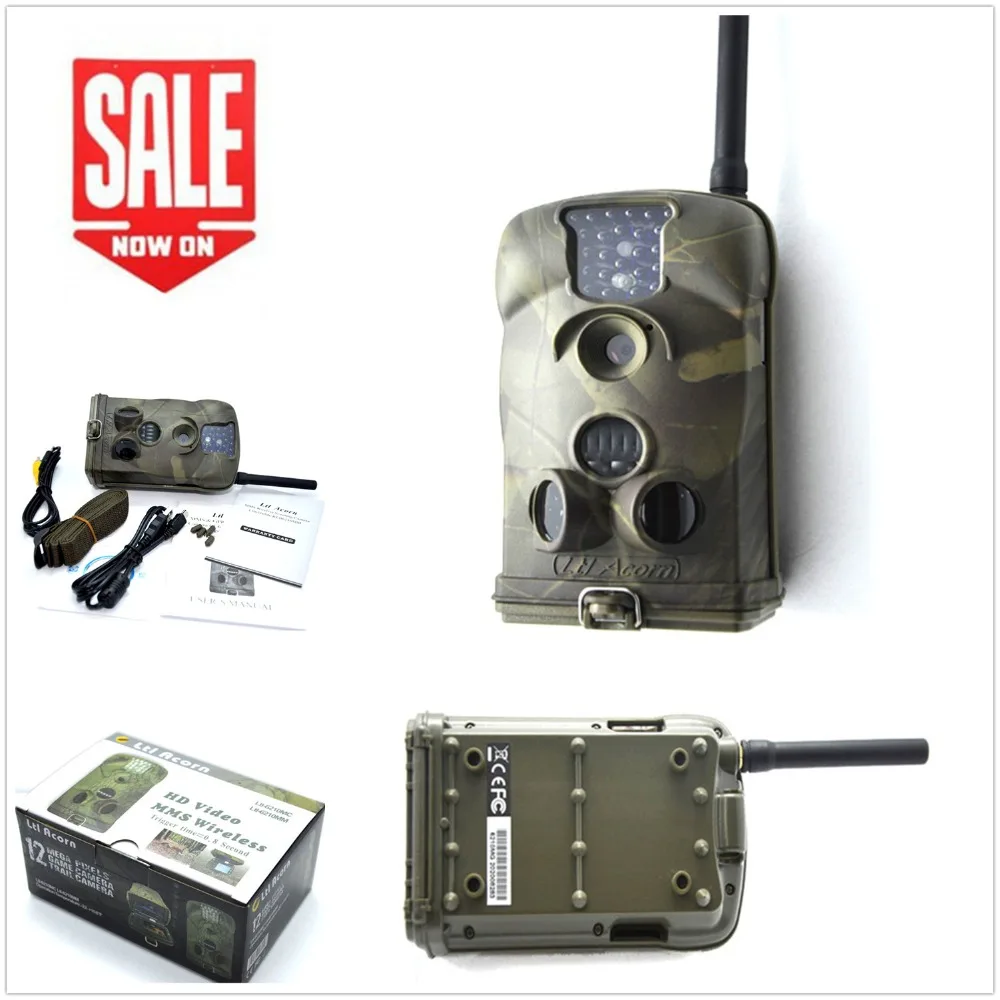

The Ltl Acorn Ltl-6210M is a step-up to Ltl-5210M. it provides enhanced features and better performances. Bundled with the MMS-module, the standard scouting camera can be upgraded to work as a remote cellular camera. With its highly sensitive Passive Infra-Red (PIR) sensor, the camera detects the sudden change of ambient temperature caused by moving game in a region of interest, triggers to take pictures/videos, and sends the images via GSM network to the user’s cell phone or email account.
Features:
5M/12M/2M pixel high-quality resolution
1440×1080/1280×720/640×480 H.264/AVC format HD video with audio Infrared night vision LEDs No-glow model 940nm has 42 feet (13m) flash range
“Cam + Video” mode enables camera to take both picture and video at every trigger event
Continuous shooting interval time about 0.5 or 1.0 seconds (stamp off or on)
Extremely long in-field life (in standby mode, up to 6 months with 12xAA batteries)
Unique side Prep Sensor design provides wider sensing angle and enhances camera’s response speed
Perform in the most extreme temperatures from -22°F to 158°F
Compact size (5 ½ x 3 ½ x 2 ½ inches). Well designed to deploy covertly impressively quick trigger time (1.2 second)
Programmable to work as Time-Lapse camera taking pictures/videos in long range day and night
When timer setting on, programmable to only work in specified period every day. This feature can be used together with time lapse feature to meet your timetable.
In camera’s bottom cover built-in 2.0” TFT color display to review images and videos.
Date, time, temperature, moon phase and battery level can be stamped on picture
Lockable and password protected
Send 640×480 resolution MMS image
Advanced remote cellular technology transmits images to your cell phone or email account constantly at lower battery consumption and shorter transmission time, compared to products of its kind on the market.
Text alert when battery power level goes low
Check cellular signal reception on the built-in TFT display on the field
Internal antenna design. External antenna is available when using security box.
Operates globally via 2G GSM/GPRS network. Supports four bands: 850/900/1800/1900MHz.
Application:
Trail camera for hunting
Animal or event observation
Motion-triggered security camera, for home, office and community
All other indoor/outdoor surveillance where intrusion evidence and live alert needed
| Model |
Parameters |
| Image Sensor |
5 Mega Pixels Color CMOS |
Yes |
| Max. Pixel Size |
2560×1920 |
Yes |
| Lens |
F=3.1; FOV=52°; Auto IR-Cut |
Yes |
| IR Flash |
850nM:82 Feet/25 Meters,940nM:42 Feet/13 Meters |
Yes |
| LCD Screen |
40.8×30.6mm(2.0″); 960(RGB)*240DOT;16.7M Color |
Yes |
| Operation Keypad |
6 Keys |
Yes |
| Memory |
SD Card (8MB ~32GB) |
Yes |
| Picture Size |
5MP/12MP/2MP = 2560X1920/4000X3000/1600X1200; |
Yes |
| Video Size |
1440×1080: 15 fps; 1280×720: 30fps; 640×480: 30fps; |
Yes |
| PIR Sensitivity |
High/Normal/Low |
Yes |
| PIR Sensing Distance |
82ft/25m(Below 77°F/25°C at the Normal Level) |
Yes |
| Prep PIR Sensing Angle |
Left and right light beams form an angle of 100°; Each lens covers 10° |
Yes |
| Main PIR Sensing Angle |
35° |
Yes |
| Operation Mode |
Day/Night |
Yes |
| Trigger Time |
1.2Second (When using the 2G SD card) |
Yes |
| Trigger Interval |
0sec. – 60min; Programmable |
Yes |
| Shooting Numbers |
1~3 |
Yes |
| Video Length |
1-60sec.; Programmable |
Yes |
| Camera + Video |
First take Picture then Video |
Yes |
| Playback Zoom In |
1~16 Times |
Yes |
| Time Stamp |
On/Off; Include serial No., temperature and moon phase |
Yes |
| Timer |
On/Off; Programmable |
Yes |
| Password |
4-Digit Numbers |
Yes |
| Device Serial No. |
4 digits and 26 alphabets set by yourself |
Yes |
| Time Lapse |
On/Off; 1 Second ~ 24 Hours Programmable |
Yes |
| SD Card cycle Save |
On/Off; |
Yes |
| MMS Options |
VGA=640×480;SMS;OFF,Programmable |
Yes |
| MMS Numbers |
“0? = Unlimited; 0 ~ 99/Day |
Yes |
| MMS Phone No. |
1 ~ 3 Phone Numbers |
Yes |
| MMS E-mail |
0 ~ 3 E-mail address |
Yes |
| SMS |
1~3 |
Yes |
| Low-Battery SMS Alert |
“Battery Low? text alert sent |
Yes |
| language setting |
Change Country Setting Language |
Yes |
| Power Supply |
12xAA; |
Yes |
| External DC Power Supply |
Plug Size: 4.0×1.7,6 ~ 12V (1 ~ 2A) |
Yes |
| Stand-by Current |
0.4mA |
Yes |
| Stand-by Time |
4-6 Months(12xAA) |
Yes |
| Auto Power Off |
Auto power off in 2 minutes if no keypad input |
Yes |
| Power Consumption |
150mA (+350mA when IR LED lights up) |
Yes |
| Low Battery Alert |
4.2~4.3V |
Yes |
| Interface |
TV out ; USB; SD Card and SIM Slot; 6V DC External |
Yes |
| Mounting |
Strap; Tripod |
Yes |
| Waterproof |
IP54 |
Yes |
| Operation Temperature |
-22~+158°F/-30 ~+70°C |
Yes |
| Operation Humidity |
5% ~ 95% |
Yes |
| Certificate |
FCC & CE & ROHS |
Yes |
Package Includes:
1 X Digital Camera
1 X Antenna
1 X TV AV IN Cable
1 X USB Cable
1 X Strap
1 X CD Manual
1 X Warranty Card
