Ltl Acorn Ltl-6310WMG Infrared Trail MMS Wireless Scouting Camera Wide Lens Game Hunting 720P Video 44 IR LEDs 850nm SMS Remote Control
Hot Spots:
- 5M/12M pixel high-quality resolution, 720P video mobile scouting camera
- With wide lens of 100° takes picture in a view 4 times wider in range than other products of its kind
- Infrared night vision LEDs 850nm flash range as far as 98 feet / 30m
- “Cam + Video” mode enables camera to take both picture and video every time it triggers
- Impressively quick trigger time (0.8 seconds)
- Extremely long in-field battery life (in standby mode, up to 6 months with 12 AA batteries)
- Operates globally via 2G GSM/GPRS network. Supports four bands: 850/900/1800/1900MHz

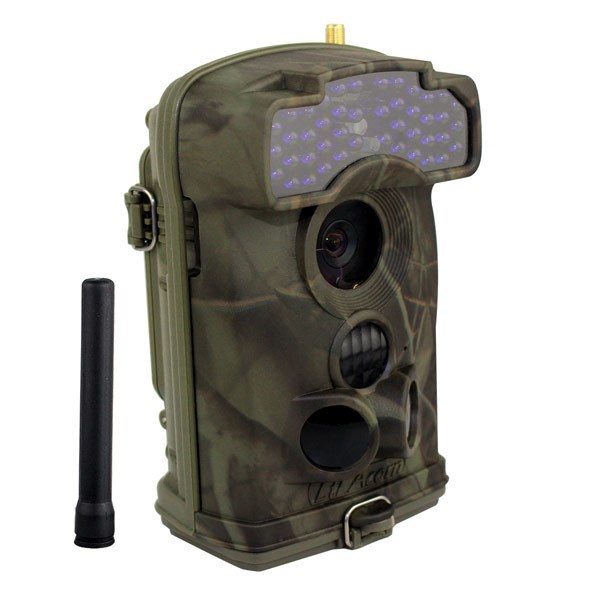

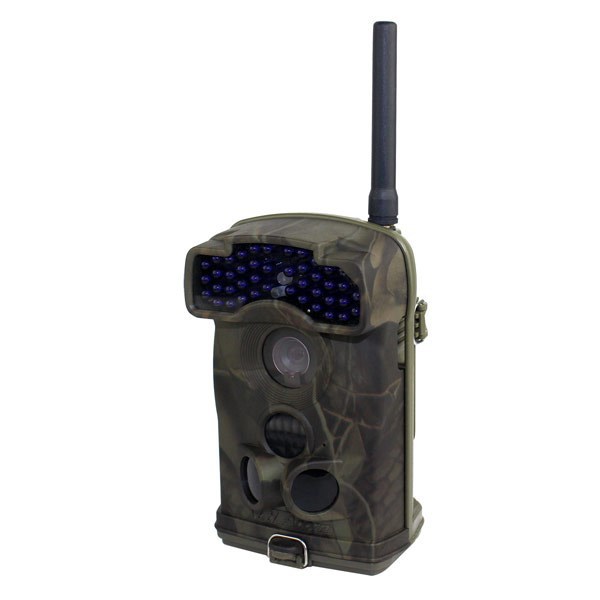

The Ltl Acorn 6310WMG camera, with its highly sensitive Passive Infra-Red (PIR) sensor, detects the sudden change of ambient temperature caused by moving game in a region of interest (ROI), triggers to take pictures/videos, and sends the images via 2G GSM network to your cell phone or email account.
With newly developed SMS remote control feature you can change the settings of your camera by sending it text messages in a particular format. LTL-6310, a step-up version of LTL-6210, provides better performance through enhanced features. Forty-four LED makes LTL-6310 series most outstanding on night picture quality, ideal for security and surveillance purposes. Ltl-6310W with wide lens of 100° takes picture in a view 4 times wider in range than other products of its kind.
Features:

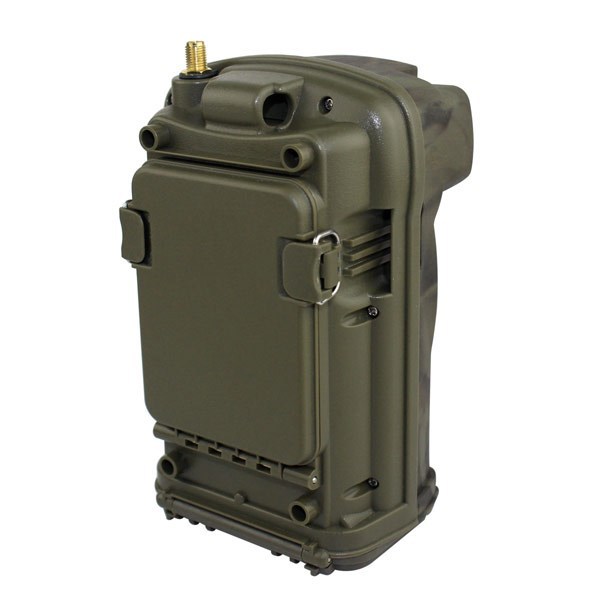

- Different position of screen to avoid erosion from battery leakage and potential damage from the camera being accidentally dropped during installation
- 5M/12M/2M megapixel high-quality resolution.
- Text your camera to change its parameters, made possible by the new SMS RCP (remote control program). Also, instruct your camera to send pictures it has taken to you using SMS order CODE 60 (see the list of order codes in Section 2.7 SMS Remote Control)
- 1440×1080 / 1280×720 / 640×480 H.264/AVC format HD video with audio.
- Infrared night vision LEDs 850nm flash range as far as 98 feet / 30m
- “Cam + Video” mode enables camera to take both picture and video every time it triggers
- Take multiple consecutive pictures with an interval time of about 1.5 seconds.
- Extremely long in-field battery life (in standby mode, up to 6 months with 12xAA batteries)
- Unique side Prep Sensor design provides wider sensing angle and enhances camera’s response speed
- Perform in the most extreme temperatures from -22°F to 158°F
- Compact size (5.5×3.5×3 inches). Perfect designed to deploy covertly
- Impressively quick trigger time (0.8 second)
- Programmable to work as Time-Lapse camera taking pictures/videos in long range day and night.
- When timer setting is turned on, programmable to only work in specified period every day. This feature can be used together with time lapse feature to meet your timetable.

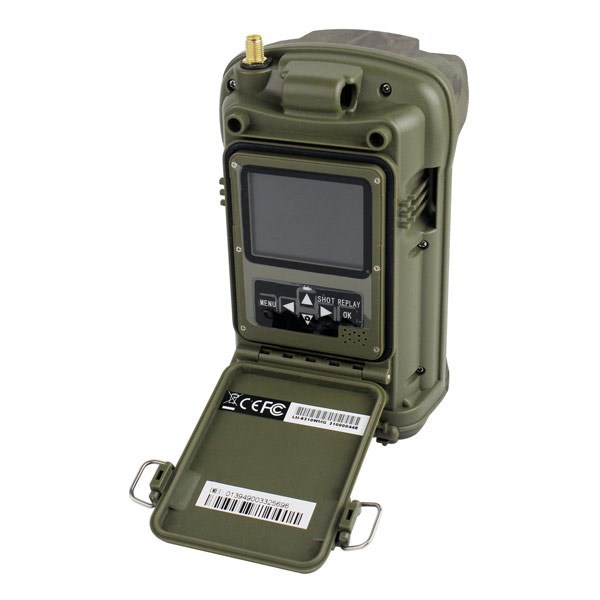

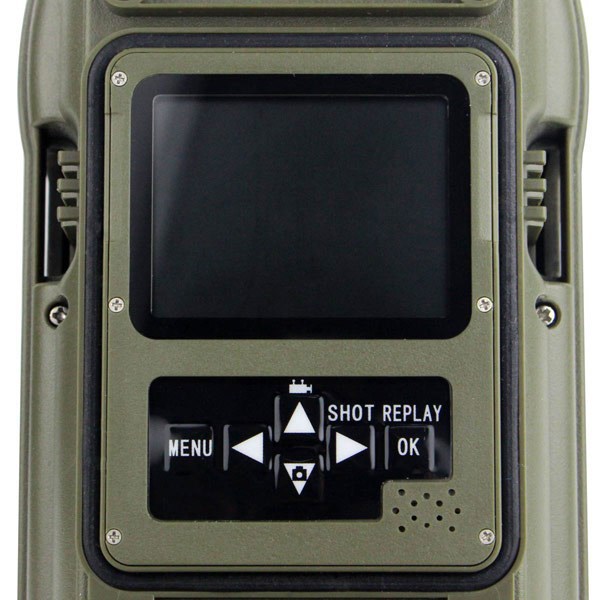

- Built-in 2.0 inch TFT color screen to review images and videos at the back of the camera
- Date, time, temperature, moon phase and battery level can be stamped on picture.
- Lockable and password protected
- Send 640×480 resolution MMS image
- Setup is a snap. Just run the user-friendly software on the enclosed CD on the computer, or do it directly on the built-in TFT screen
- Multiple languages available by changing the country setting in MMS menu or PC software
- SD card can be set in “cycling save” mode, which automatically deletes the earliest photos or videos and makes room for new ones.
- Advanced Remote Cellular Technology transmits images to your cell phone or email account constantly at lower battery consumption and shorter transmission time, compared to similar products on the market.
- Get SMS text alert when battery power level goes low.
- Check cellular signal reception on the screen.
- External antenna available when using security box.
- Operates globally via 2G GSM/GPRS network. Supports four bands: 850 / 900 / 1800 /1900MHz.
Application:
- Trail camera for hunting
- Animal or event observation
- Motion-triggered security camera for home office and community
- All other indoor/outdoor surveillance where invasion evidence and live alerts are needed
Specification:
|
Image Sensor
|
5 Megapixels Color CMOS
|
|
Pixel Size
|
2560×1920
|
|
Lens
|
FOV=100°, Auto IR-Cut
|
|
IR Flash
|
850nm, 98feet/30meters
|
|
LCD Screen
|
40.8×30.6mm(2.0”); 960(RGB)x240DOT; 16.7M Color
|
|
Operation keypad
|
6 keys
|
|
Memory
|
SD Card 8MB~32GB
|
|
Picture Size
|
5MP/12MP/2MP=2560×1920/4000×3000/1600*1200
|
|
Video Size
|
1440*1080(15fps); 1280*720(30fps); 640×480(30fps)
|
|
PIR Sensitivity
|
High/Normal/Low/Off
|
|
PIR Sensor Distance
|
65ft/20m(Below 77°F/25°C at normal level)
|
|
Prep PIR Sensing Angle
|
Left and right light beams form an angles of 100 degree, each lens covers 10 degree
|
|
PIR Sensor sight angle
|
35 degree
|
|
Operation Mode
|
Day/Night
|
|
Trigger time
|
0.8 seconds
|
|
Triggering interval
|
0 second ~ 60mins; Programmable
|
|
Shooting Numbers
|
1~3
|
|
Video Length
|
1-60sec; Programmable
|
|
Camera + Video
|
First take picture and then take video
|
|
Playback Zoom in
|
1~16 times
|
|
Time stamp
|
On/Off, include serial No., temperature and moon phase
|
|
Timer 1
|
On/Off; programmable
|
|
Timer 2
|
On/Off; programmable
|
|
Password
|
4-Digit Numbers
|
|
Device Serial No.
|
4 digits and 26 alphabets set by yourself
|
|
Time Lapse
|
On/Off; 1Second ~ 24Hours
|
|
Beep sound
|
On/Off
|
|
SD Cycle
|
On/Off
|
|
MMS Options
|
VGA=640×480; SMS=Text Msg; OFF; programmable
|
|
MMS Numbers
|
“0”=Unlimited; 1~99/Day
|
|
MMS Phone No.
|
1~3 Phone Numbers
|
|
MMS E-mail
|
1~3 E-mail addresses
|
|
GPRS E-mail
|
1~3 E-mail addresses
|
|
Low-battery SMS Alert
|
“Low battery” text alert sent
|
|
Language setting
|
Change country can setting language
|
|
Power Supply
|
12xAA battery
|
|
External DC Power Supply
|
Plug size: 4.0×1.7mm; 6~12V (2~1A)
|
|
Stand-by Current
|
0.4mA
|
|
Stand-by time
|
4~6 months
|
|
Auto power off
|
Auto power off in 3 minutes if no keypad input
|
|
Power Consumption
|
150mA(+350mA when IR LED lights up)
|
|
Low Battery Alert
|
4.2~4.3V
|
|

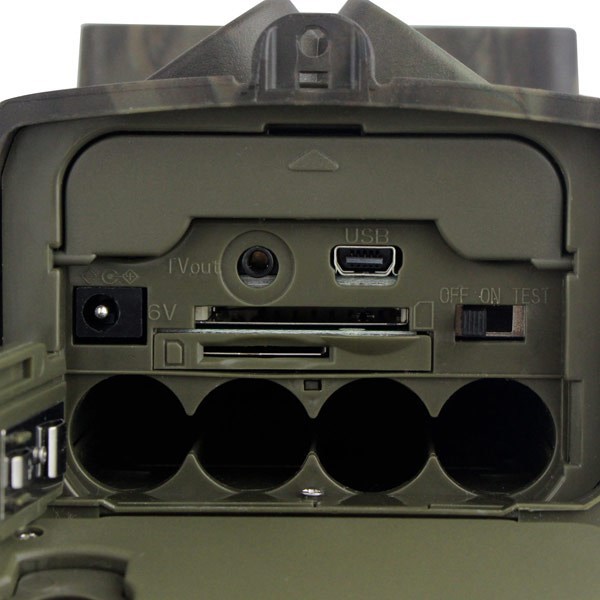

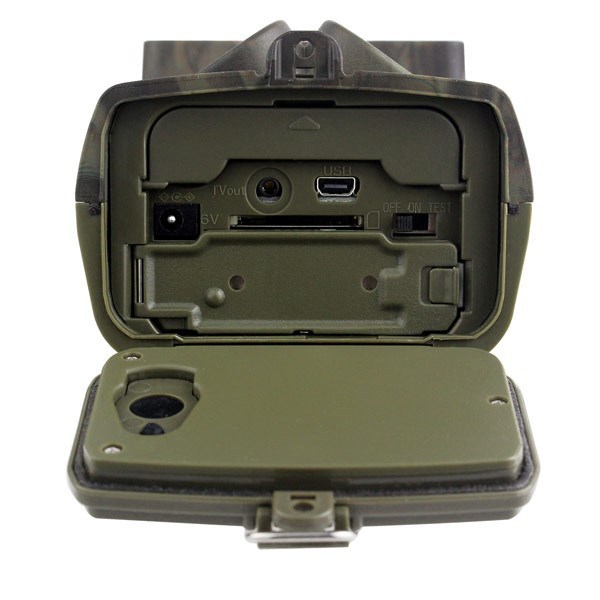

Interface
|
TV out(NTSC); USB; SD Card Slot; 6V DC External
|
|
Mounting
|
Strap, Tripod
|
|
Water Proof
|
IP54
|
|
Operation Temperature
|
-30 – +70°C/-22 – +158°F
|
|
Operation Humidity
|
5% – 95%
|
|
Certificate
|
FCC, CE, RoHS
|

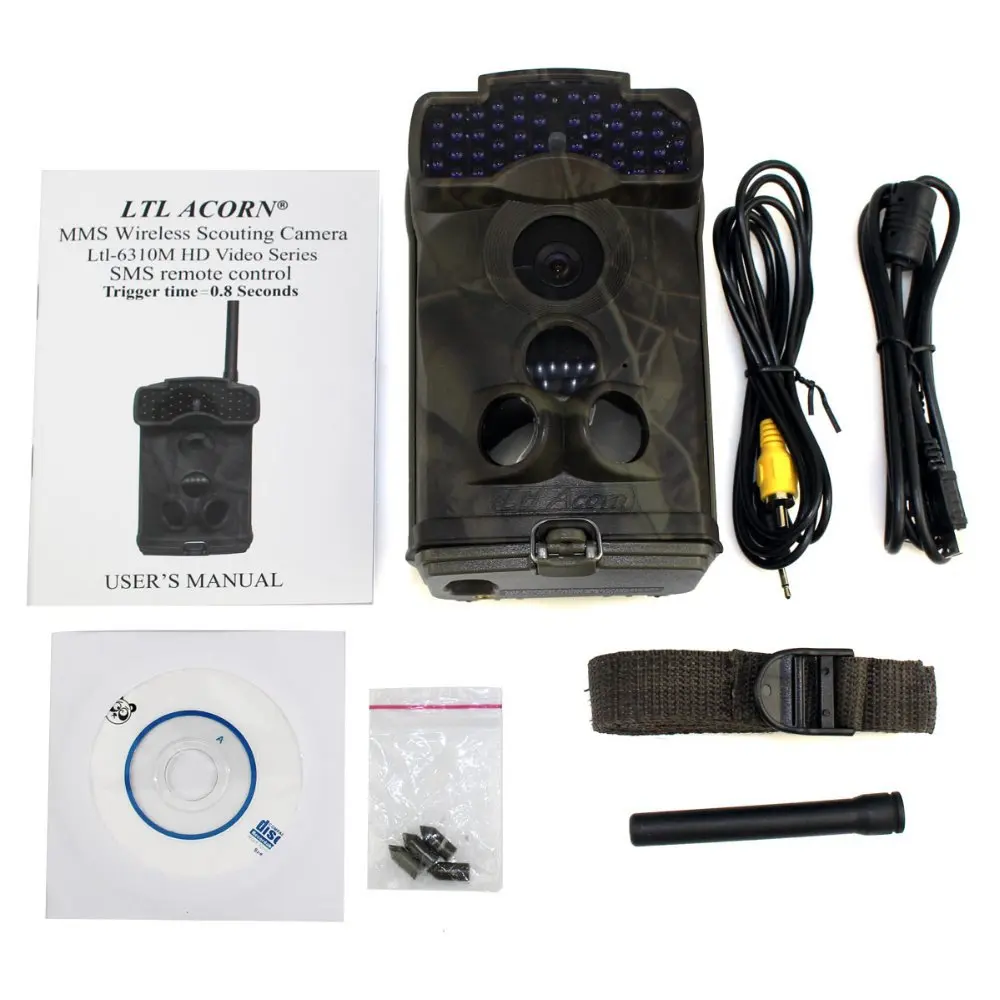

Package Includes:
- 1 X Digital Camera
- 1 X TV AV IN Cable
- 1 X USB Cable
- 1 X Strap
- 1 X CD
- 1 X Manual
