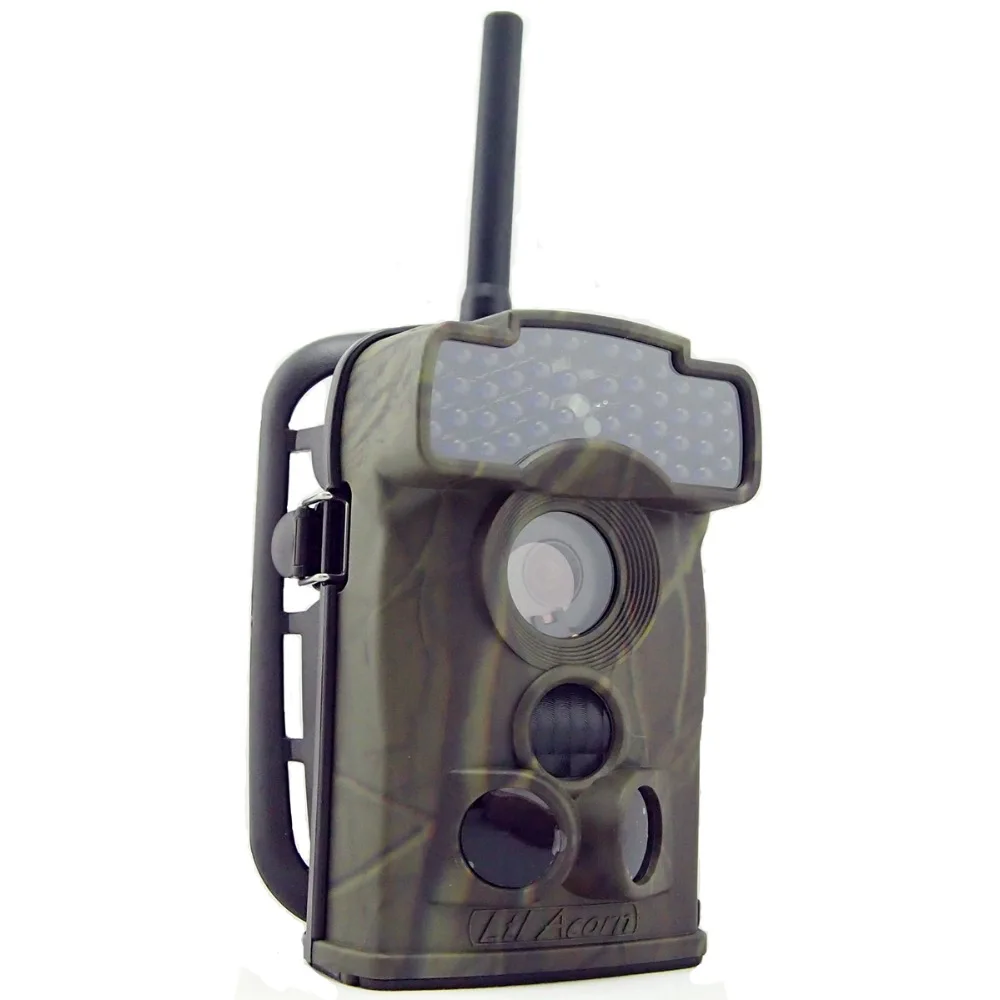

Ltl Acorn Ltl-5310WMG Infrared Trail Scouting Camera Game Hunting 940nm LED 720P Video 44 IR LEDs MMS SMS Remote Control

Hot Spots:

  • 5M/12M pixel high-quality resolution, 720P video mobile scouting camera
  • Infrared night vision No-glow 940nm LEDs for flash range as far as 65 feet, luminance as bright as 850nm
  • “Cam + Video” mode enables camera to take both picture and video at every trigger event
  • Quick trigger time (0.6 second)
  • Lockable and password protected
  • SMS remote control

The Ltl Acorn 5310WMG is the third generation of our Ltl acorn scouting camera. Bundled with the MMS-module battery box. With its highly sensitive Passive Infra-Red (PIR) sensor the camera detects the sudden change of ambient temperature caused by moving game in a region of interest (ROI), triggers to take pictures/videos, and sends the images via GSM network to the user’s cell phone or email account. With newly added SMS remote control feature you can change the related menu of the camera by sending SMS order to the camera in the specific form of the SMS content.


  1. Programmable 5 or 12 megapixel high-quality resolution.
  2. No-glow infrared 940nm LEDs flash (44pcs) range as far as 65 feet, luminance as bright as 850nm.
  3. In “Cam + Video” mode, camera takes both picture and video at every trigger event.
  4. Ultra low standby power consumption. Extremely long in-field life (in standby mode, up to 6 months with 8xAA batteries)
  5. Unique side Prep Sensor design provides wider sensing angle and enhances camera’s response speed
  6. Perform in the most extreme temperatures from -22°F to 158°F
  7. Compact size (5.5 x 3.5 x 2.5 inches). Perfect designed to deploy covertly impressively quick trigger time (0.6 second)
  8. When timer setting on, the camera can be programmable to only work in specified period every day. This feature can work together with time lapse feature.
  9. Backpack-looking tree grabber makes mounting and aiming a snap photos.
  10. Built-in 2.36 inch TFT color display to review images and videos
  11. Date, time, temperature and moon phase can be stamped in the pictures.
  12. Lockable and password protected
  13. Under time lapse setting, the camera automatically and constantly takes pictures/videos at specified interval. This is very useful when observing plants flowering, birds building nests or when monitoring unattended properties such as parking lots.
  14. Two MMS image sizes to choose: 640 x 480 or 320 x 240.
  15. Users can configure the Camera and MMS function either by running the enclosed CD on the computer, or directly on the built-in TFT display.
  16. Separation of the Camera and the MMS module provides users flexibility: starting with the value model as a standard scouting camera, and upgrading to the premium model with MMS function.
  17. If local area mobile signal is bad, Could not send MMS, Also can choose to send a text message (SMS). Message content is taking pictures time and Camera serial number.
  18. Our Advanced Remote Cellular Technology transmits images to your cell phone and email account constantly at lower battery consumption and shorter transmission time, compared to products of its kind on the market.
  19. Automatically send text alert when battery power level goes low.
  20. Check cellular signal information on the built-in TFT display in the field.
  21. All MMS pictures saved in SD card as well as the original ones,
  22. Internal antenna design makes the camera portable while still emitting strong signal.
  23. Operates globally via GSM/GPRS network. Supports four bands: 850 / 900 / 1800 /1900MHz.


  1. Trail camera for hunting
  2. Animal or event observation
  3. Motion-triggered security camera for home office and community
  4. All other indoor/outdoor surveillance where invasion evidence needed


Image Sensor

5 Megapixels Color CMOS


SD Card 8MB~16GB


F=3.1, FOV=52°, Auto IR-Cut

Pixel Size


IR Flash


LCD Screen

48×35.69mm(2.36”); 480(RGB)x234DOT; 16.7M color

Operation keypad

6 keys

Picture Size


Video Size

640×480(20fps); 320×240(30fps); 1280*720P(20fps)

Operation Mode


PIR Sensor sight angle

35 degrees

PIR Sensor Distance

65ft/20m(Below 77°F/25°C at normal level)

PIR Sensitivity


Prep PIR Sensing Angle

Left and right light beams form an angles of 100 degree, each lens covers 10 degree

Trigger time

0.6 second(when using the 2G SD card)

Triggering interval

1 second ~ 60mins Programmable

Operation Temperature

-30 – +70°C/-22 – +158°F

Shooting Numbers


Camera + Video

First take picture and then take video

Playback Zoom in

1 ~ 16 times

Time stamp

On/Off, include serial No., temperature and moon phase

Timer 1

On/Off time lapse programmable

Timer 2

On/Off time lapse programmable


4 Protection Numbers

Device Serial No.

4 digits and 26 alphabets set by yourself

Periodic Shot

1Second ~ 24Hours

MMS Status

VGA=640×480; SMS; OFF

MMS Numbers

“0”=Unlimited; 0~99/Day

Power Supply

4xAA battery; expandable to 8xAA

Stand-by Current


Power Consumption

150mA(+650mA when IR LED lights up)

Low Battery Alert



TV out(NTSC); USB; SD Card Slot; 6V DC External


Belt, Tripod Nail

Water Proof




Package Includes:

  • 1 X 5310MM Digital Camera
  • 1 X Additional Battery Box
  • 1 X TV AV IN Cable
  • 1 X USB Cable
  • 1 X Strap
  • 1 X CD
  • 1 X Manual
  • 1 X Warranty card
