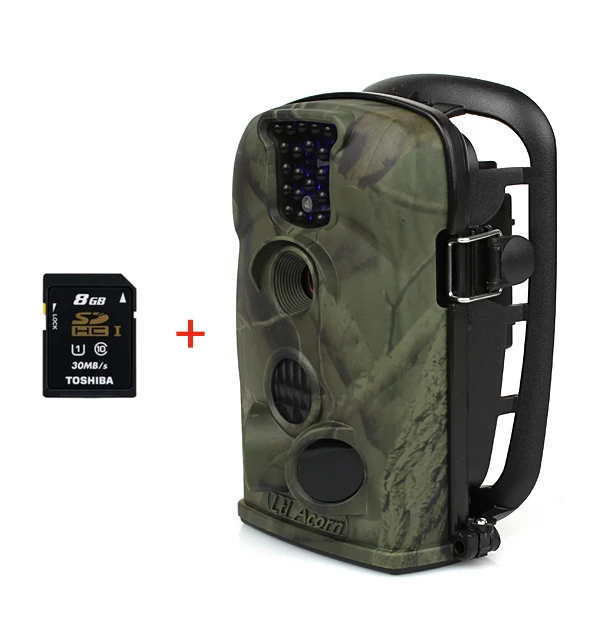

Acorn Ltl-5210A Infrared Trail Scouting Camera Game Hunting 940nm LED
Hot Spots:
- 12M pixel high-quality resolution
- Infrared night vision LEDs for flash range as far as 30 feet
- Cam + Video mode enables camera to take both picture and video at every trigger event
- Quick trigger time (1 second)
- Lockable and password protected
The Little Acorn 12MP 940NM Trail Camera is a trail camera now with NO Glow Infrareds! Featuring a built-in 2 1/4” LCD color display, 3+ month battery life, a sensor and invisible IR night vision range of 65ft, programmable 5 or 12 Mega Pixel CMOS sensor, DVD quality video (640×480), time stamp, security code, high quality photos, video, time lapse option, temperature and moon phase options, this camera is the ideal choice for use in a variety of applications. The Little Acorn 12MP Trail Scout Camera’s compact size, 5 ½ x 3 ½ x 2 ½ inches, makes it a perfect trail cam for hunting. With its Time Lapse setting, it also can be used to observe cold-blooded animals like lizards and natural events like flowering. In addition, it can serve as motion-triggered security camera for home, office, or community surveillance.
Features:
Programmable 5 or 12 megapixel high-quality resolution
Infrared night vision LEDs for flash range as far as 30 feet
Cam + Video mode enables camera to take both picture and video at every trigger event
Ultra low standby power consumption. Extremely long in-field life (in standby mode, up to 3 months with 4xAA batteries)
Unique side Prep Sensor design provides wider sensing angle and enhances camera’s response speed
Perform in the most extreme temperatures from -22°F to 158°F
Compact size (5 ½ x 3 ½ x 2 ½ inches). Perfect designed to deploy covertly impressively quick trigger time (1 second)
When timer setting on, programmable to only work in specified period every day. This feature can be used together with time lapse feature to meet your timetable.
Date, time, temperature and moon phase can be stamped in the pictures
Lockable and password protected
Under time lapse setting, the camera automatically and constantly takes pictures/videos at specified interval. This is very useful when observing plants flowering, birds building nests or when monitoring unattended properties such as parking lots.
Specification:
|
Image Sensor
|
5 Megapixels Color CMOS
|
|
Memory
|
SD Card 8MB~16GB
|
|
Lens
|
F=3.1mm, FOV=52°, Auto IR-Cut
|
|
Pixel Size
|
2560×1920
|
|
IR Flash
|
10meters
|
|
LCD Screen
|
48×35.69mm(2.36”); 480(RGB)x234DOT; 16.7M color
|
|
Picture Size
|
5MP/12MP=2560×1920/4000×3000
|
|
Video Size
|
640×480(20fps); 320×240(20fps)
|
|
Operation Mode
|
Day/Night
|
|
PIR Sensor sight angle
|
100 degrees, each lens covers 10 degrees
|
|
PIR Sensitivity
|
PIR with 3 sensitivity levels: High/Normal/Low
|
|
Trigger time
|
1 second(when using the 2G SD card)
|
|
Triggering interval
|
1 second ~ 60mins Programmable
|
|
Operation Temperature
|
-30 – +70°C/-22 – +158°F
|
|
Shooting Numbers
|
1~3
|
|
Camera + Video
|
First take picture and then take video
|
|
Playback Zoom in
|
1 ~ 16 times
|
|
Timer
|
On/Off time lapse programmable
|
|
Password
|
4 Protection Numbers
|
|
Device Serial No.
|
4 digits and 26 alphabets set by yourself
|
|
Periodic Shot
|
1Second ~ 24Hours
|
|
Power Supply
|
4xAA battery; expandable to 8xAA
|
|
Stand-by Current
|
0.4mA
|
|
Power Consumption
|
150mA(+500mA when IR LED lights up)
|
|
Low Battery Alert
|
4.2~4.3V
|
|
Interface
|
TV out(NTSC); USB; SD Card Slot; 6V DC External
|
|
Mounting
|
Belt, Tripod Nail
|
|
Water Proof
|
IP54
|
|
Certificate
|
FCC, CE, RoHS
|
Package Includes:
- 1 X 5210A Digital Camera
- 1 X Additional Battery Box
- 1 X TV AV IN Cable
- 1 X USB Cable
- 1 X Belt
- 1 X Manual
- 1 X 8GB SD Card
