Freel Ship PULSAR 1×20 NV Goggles Edge GS 1×20 #75095
Details
| Specification(HY2152) |
| Image tube type |
EP33-SF-U |
Magnification |
1x |
| Generation |
CF-Super |
Objective lens(mm) |
20 |
| Resolution( lines per mm) |
42 |
Angular field of view, degree |
36 |
| Eyepiece adjustment(diopter) |
±4 |
Min. Focusing Distance, m |
1 |
| Eye relief (mm) |
12 |
IR Wavelength ( nm ) |
805 |
| Equivalent IR Power(MW) |
30 |
Max. detection range(m) |
90 |
| Operating voltage (V) |
3 (2XAAA) |
Dimensions (mm) |
16.3×11.3×6.0 |
| Weight of the unit (kg) |
0.65 |
Weight of the head mount (kg) |
0.2 |
Features
Constant image quality across the whole field of view
CF-Super’s resolution is notable for its consistency (resolution difference between the centre/edge does not exceed 20%, whilst centre/edge resolution ratio for Gen.1 units is more than five times.
Effective field of view
High resolution and geometric image precision provided by CF-Super based NV devices provides effective observation of an object located in any part of unit’s field of view. Majority of Gen. 1 devices features decent image quality only in the centre of the imaging area.
Built-in wide-angled IR illuminator
The Edge night vision goggles are equipped with an energy-conserving wide-angled IR illuminator with a gradual power adjustment function.
Tube protection
The Edge GS features an image intensifier tube protection system – once the luminance threshold level is exceeded, current feed to the tube is automatically reduced or fully ceased. This allows the user to reach the highest possible tube performance.

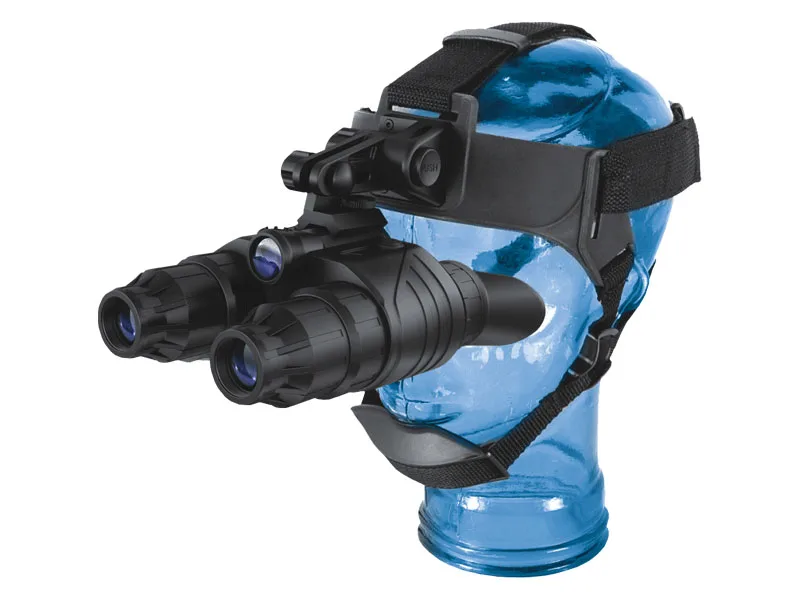

Compact Head Mount
The Compact Head Mount is designed for joint use with the Edge GS 1×20 or Edge G2+ 1×21 night vision goggles. This allows hands-free operation of the night vision device in partial and complete darkness. The Head Mount ensures stable positioning of a night vision device in front of the user’s eyes, even while in fast motion (pacing, running, abrupt movements). The Head Mount is simple and convenient to use. Minimal protrusion of the suspension point reduces fatigue and load on the user’s neck if operated for long periods of time. The Head Mount can also be paired with a camouflage cover.
Controls
The Edge night vision binoculars are easy in operation. The device and IR illuminator are switched by pressing buttons (ON and IR respectively) located on the top of the body. Additionally, the Edge binoculars & goggles are equipped with a gradual IR illuminator power adjustment function.
Body
The body of fiberglass reinforced plastic is able to effectively withstand impact, moisture and dust which allows the units to be used in extreme conditions.
Eyepiece
New five-lens eyepiece with skewed rubber eyecup provides no distortion across the edges of the field of view and increases image sharpness and contrast.
