It is Latest SG880MK-12mHD UPGRADED VERSION from previous popular version SG880MK-12M
THIS IS IT! the MOST powerful and LATEST MARVEL from the ScoutGuard family, featuring military style genuine BLACK infrared (making it absolutely no flash beam at all to human and animal eyes) COMPLETE BLACK IR – “WON’T GIVE YOUR POSITION AWAY ” BRAND NEW 2015 LONG RANGE ScoutGuard SG880MK-12m HD
 Two-way SMS control
HD video 1280x720p with Sound recording Hunting Game Security Camera Enhanced Antenna capability Black IR Wireless All in ONE!.
 It ideal for covert operation to catch thieves or capture pictures or video or wild animals and report back to you using MMS or email.
The SG880MK-12mHD adds GPRS transmission capability (it saves monthly SIM prepaid card bill in many countries),2-Way SMS Control function, HD video with sound. SG880MK-12m HD Captures both high resolution pictures or HD video at 1280x720p with Sound!
This is one of the best cameras on the market for battery life, trigger time, picture quality & clarity! SMS/MMS/eMail via GPRS!
 THIS IS IT!
the MOST powerful and LATEST MARVEL from the ScoutGuard family, featuring genuine BLACK infrared(making it absolutely no flash beam at all to human and animal eyes)
COMPLETE BLACK IR – “WON’T GIVE YOUR POSITION AWAY ”

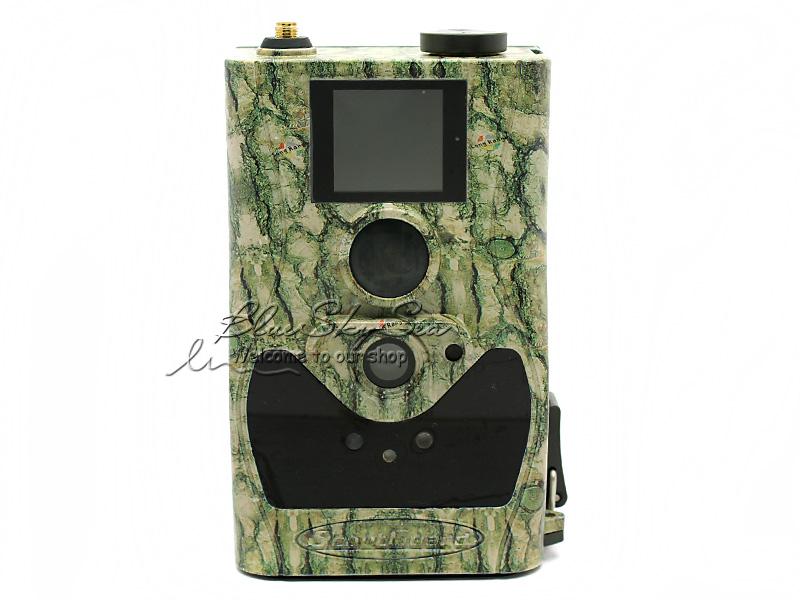

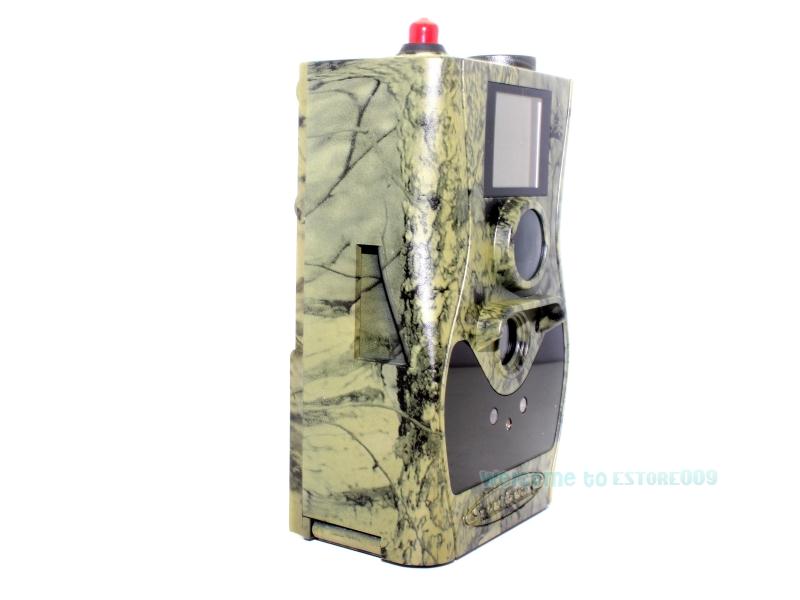

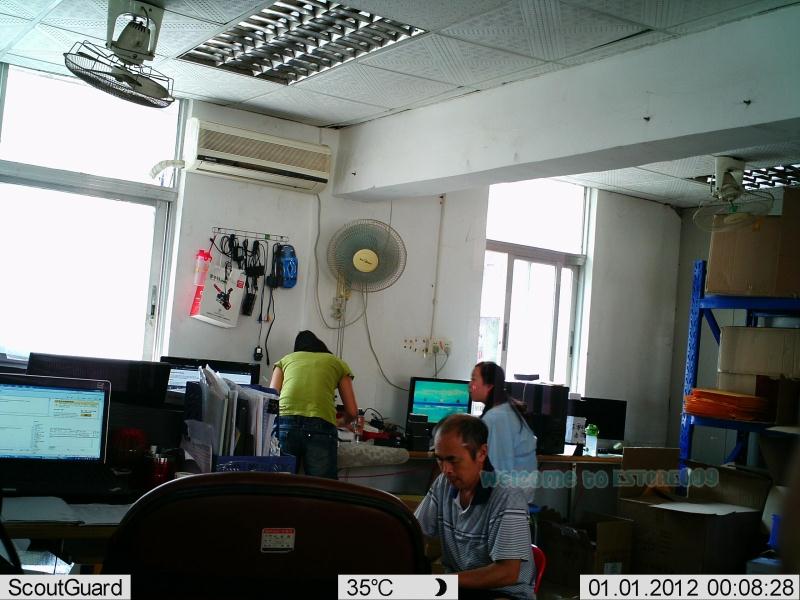

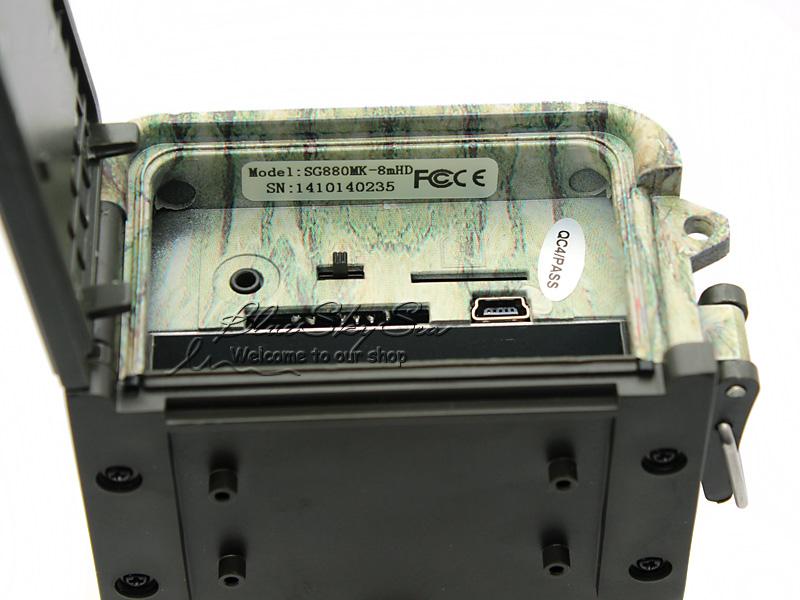

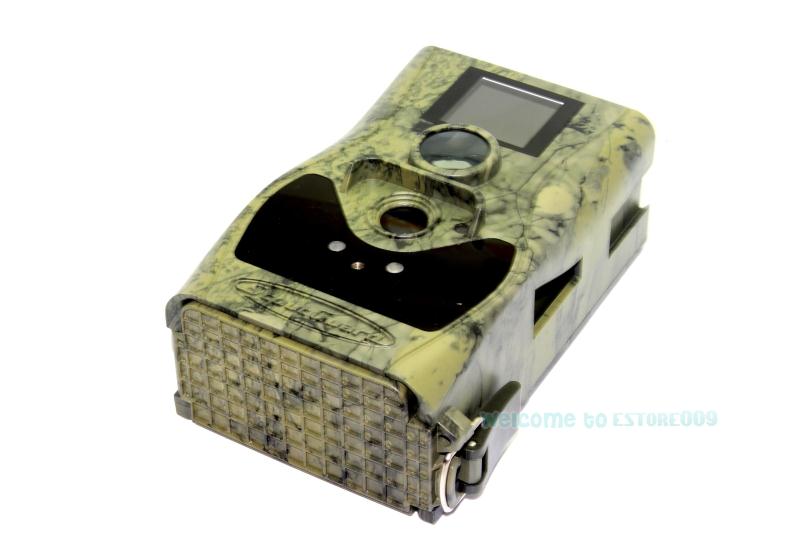

Real Photos are below :


Features: VGA 640×480 video quality Built-in color LCD viewer & remote control 940nm Black IR LED Transmitted picture size is 800×600 to email and 640×480 to phone 67 feet (20M) long range motion detection and illumination Native solar charger and external power support with 6V input Quick trigger time (<1.3s) Lockable with mounting strap, nail/screw and cable lock Both MMS and GPRS support, compatible with 2G/2.5G GSM network Additional components: remote control programmer, mounting strap, TV cable, and USB cable for PC Support up to 32GB SD/SDHC cards(not included) Specifications: Image Sensor: 5MP color CMOS, 8MP interpolation Lens: F/NO = 3.0; FOV = 52° PIR Detection Range: 18M/60F Display Screen: 1.5″ LCD Memory: SD card, 32GB max. Picture Resolution: 1 2MP=4032×3024 8MP = 3328 x 2496 5MP = 2560 x 1920 Video Resolution:
1920*720p 640 x 480 PIR Sensor: Multi-zone PIR Sensitivity: Adjustable (high/normal/low) Trigger Time: 1.2s Weight: 0.30kg Operation/Storage Temperature: -20 – +60°C / -30 – +70°C Interval: 1 sec – 60 min Photo Burst: 1-3 Video Length: 1 – 60sec Power Supply: 8 x AA or 4 x AA Stand-by Current: < 0.25 mA (< 6 mAH/day) Max. Power Consumption: 400 videos (interval = 5 min, video length = 10 sec); > 500 MMS (with 8 x AA batteries) Low Battery Alert: LED indicator Sound Recording: Available Mounting: Rope, belt, Python lock Dimensions: 140 x 87 x 55 mm Operation Humidity: 5% – 90% Security Authentication: FCC, CE, RoHS
SG880MK-12M revolutinizes the game camera industry by sending pictures to your mobile phone and/or Email instantly
after the pictures/videos are taken!
Unlike other wireless cameras that need to log onto a website requiring monthly fees,
SG880M-12M automatically sends pictures to your cell phone, personal email or both via MMS instantly.
With all the high-end features as standard alone trail camera, it also sends images through wireless text message or email.
SG880MK-12M is perfect for scouting, security, and surveilance anywhere a cellular signal is available.
This camera, a digital scouting camera with MMS function, is a digital infrared surveillance camera,
triggered by any movement of humans or animals monitored by a high sensitive Passive Infrared (PIR) motion sensor,
and then automatically captures high quality pictures (up to 12M pixels) or records video clips (VGA) according to default settings
or preset customer settings. It will then send the pictures instantly to your mobile device or e mail via GSM/GPRS/MMS network.
You’ll be alerted just when the camera is triggered or per custom settings.

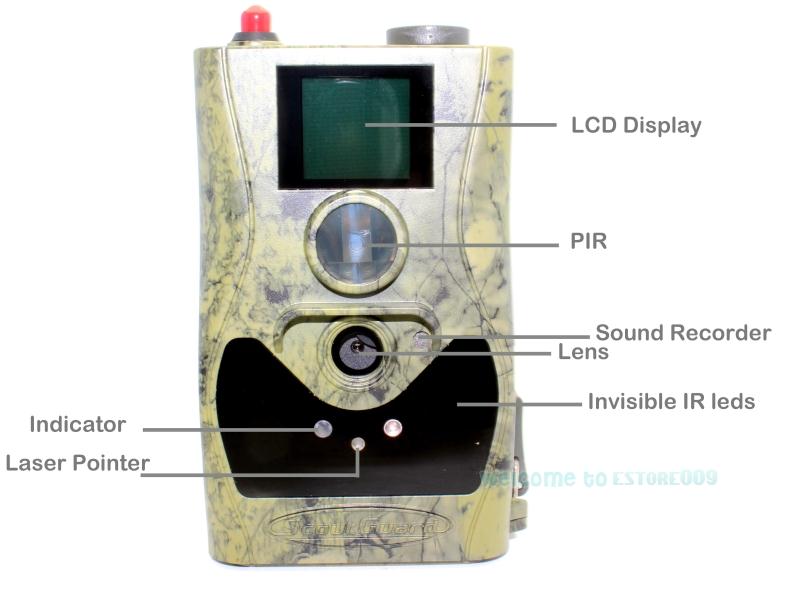

There is a 1.5″ color LCD display screen on the camera and a sound recorder embedded in the camera.
A laser pointer is used to help target the photo area of the camera.
It takes color pictures or videos under sufficient daylight. While at night, the built-in infrared LED’s take clear pictures or videos (monochrome).And this model has a new design of PIR and this new PIR is patented. The new patented PIR’s detection range can reach to 12m.

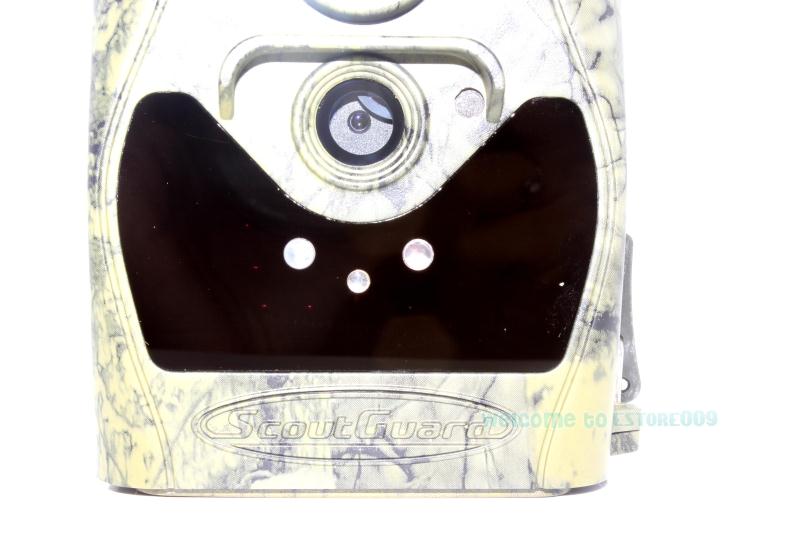

The LED is 940nm , Which is invisible .
You can see the information below when it is on test mode.
Real Time picture retrieval. More accurate scouting information. Great for security applications.
It works as a non-wireless device as well. SD card capacity allows you to use your device in areas with no cell coverage. Allows you to retrieve images while in the field.
This model is designed to last up to 6 Months in the filed thanks to new advanced power management design .

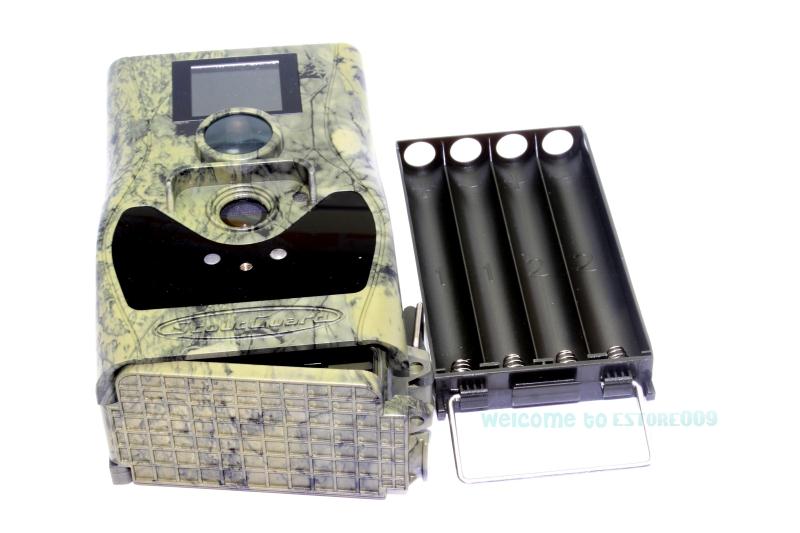

To supply power for the camera, four or eight size AA batteries are needed(Batteries are not included). Open the bottom cover. Confirm that the power switch is in the OFF position and pull out the battery pack by pulling the silver handle. Load the fully charged batteries into the pack according the polarities signs shown below. Push the battery pack back into to the battery chamber. The following batteries with 1.5V output can be used: 1. High-density and high-performance alkaline batteries (Recommended) 2. Rechargeable alkaline batteries 3. Rechargeable NiMH batteries
SG880MK-12M has a new design of PIR and this new PIR is patented. The new patented PIR’s detection range can reach to 25m. The figure 6 shows the compared detection zone betweennormal PIR and the new patented PIR.

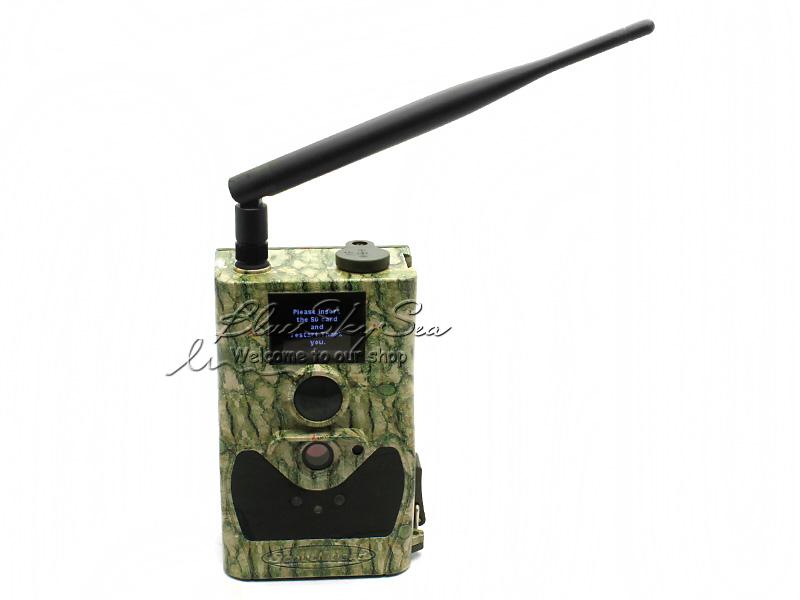

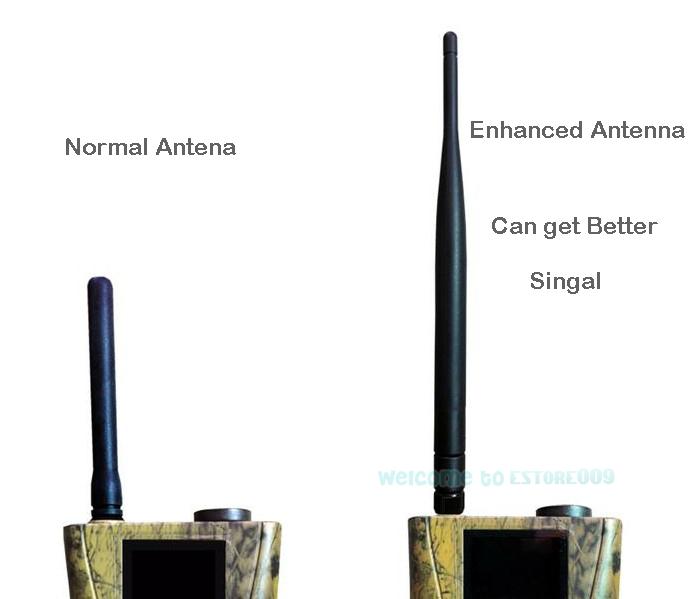

It is enhanced Anternna ,not normal one.

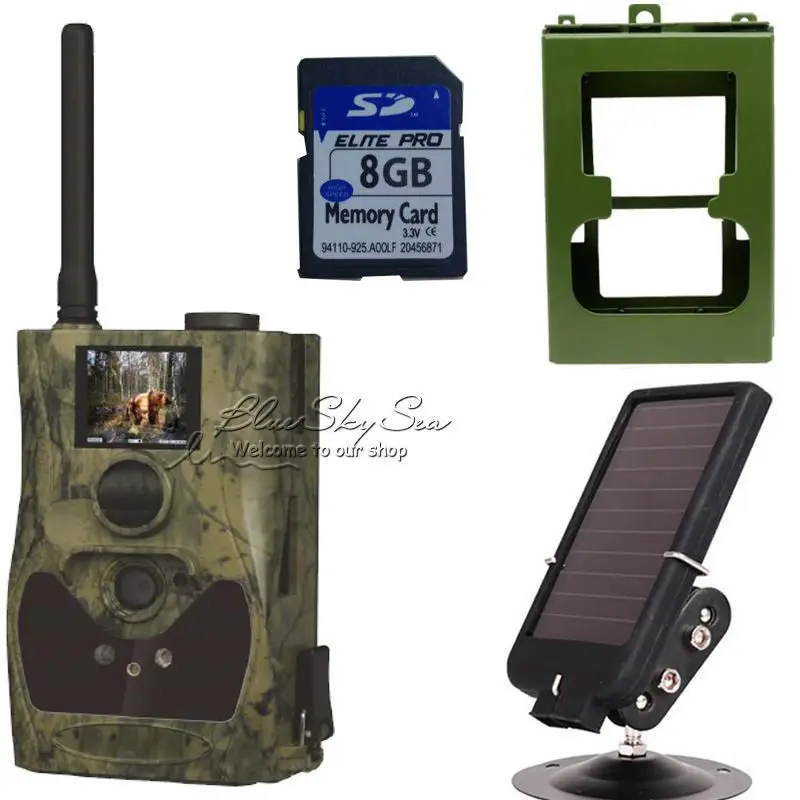

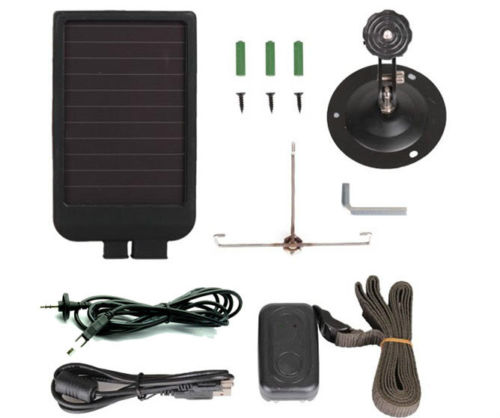

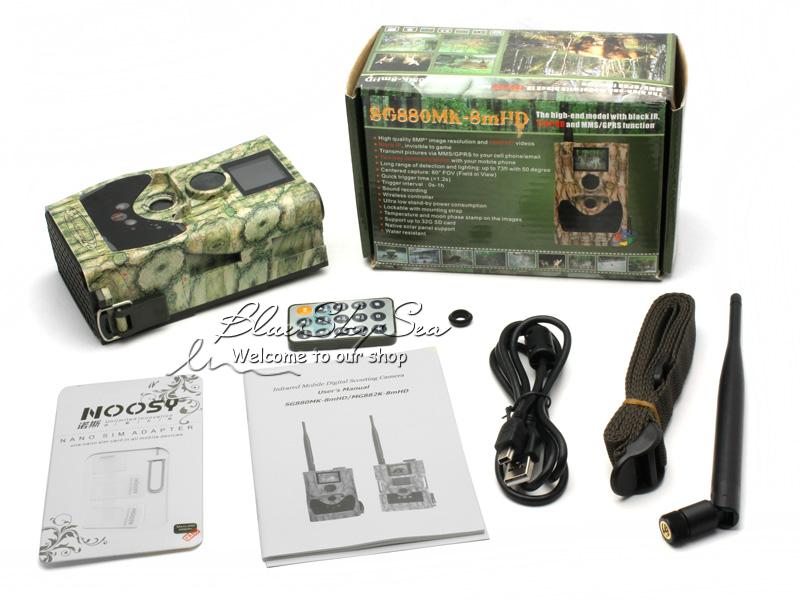

What’s included in the package :
Please check here to see what’s included in the package,not from the user Manual ,it shows different package contents.
1xGenuine ScoutGuard Latest 2015 version SG880MK-12M HD Trail Security Game Scouting PURE BLACK OPS Farm WIRELESS MMS SMS camera
1x Remote controller
1x Mountain Strap
1x USB cable from camera to PC/Mac
1x Detailed Well Written English Manual

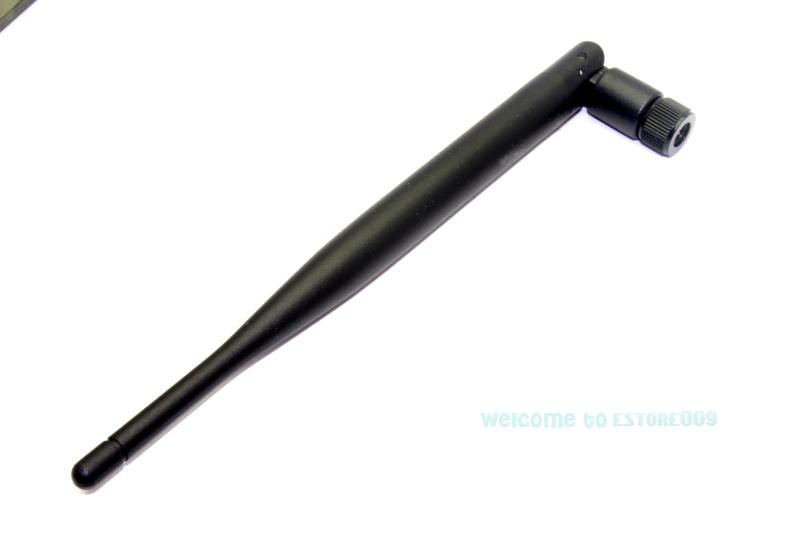

1x enhanced Antenna
1X8GB SD Card

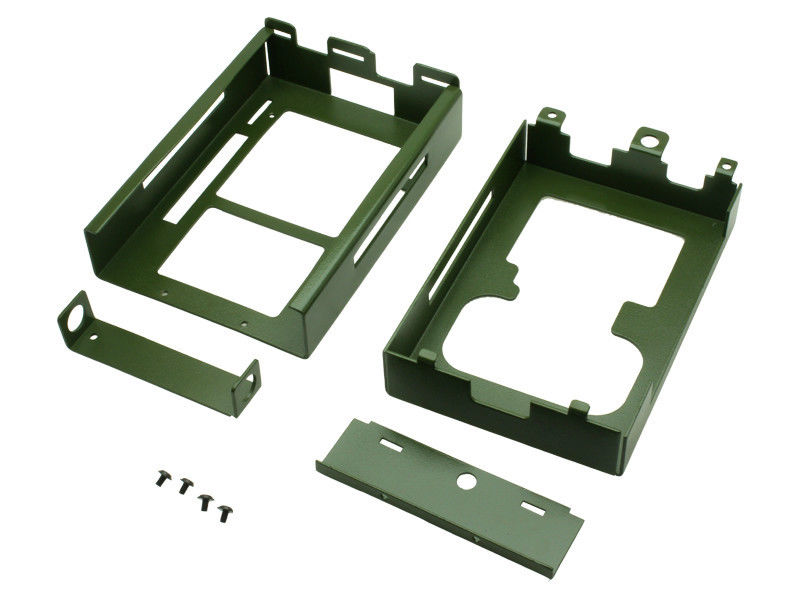

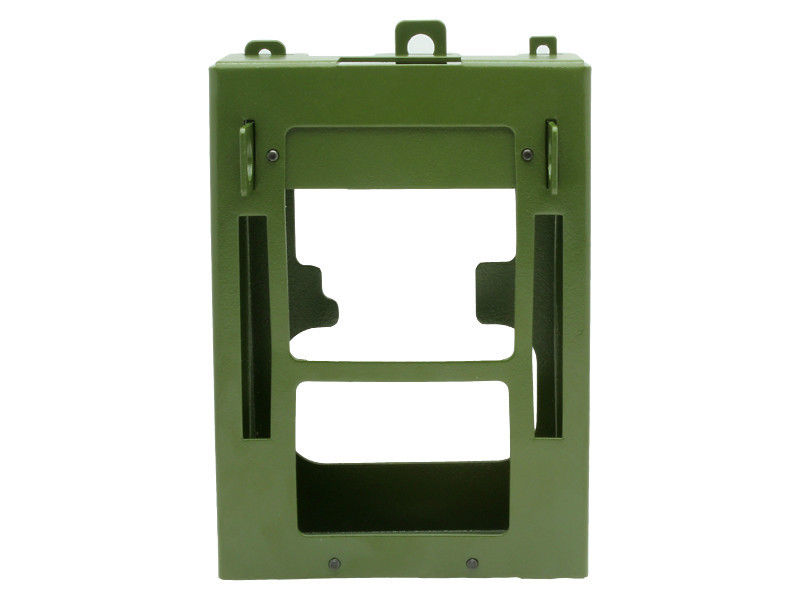

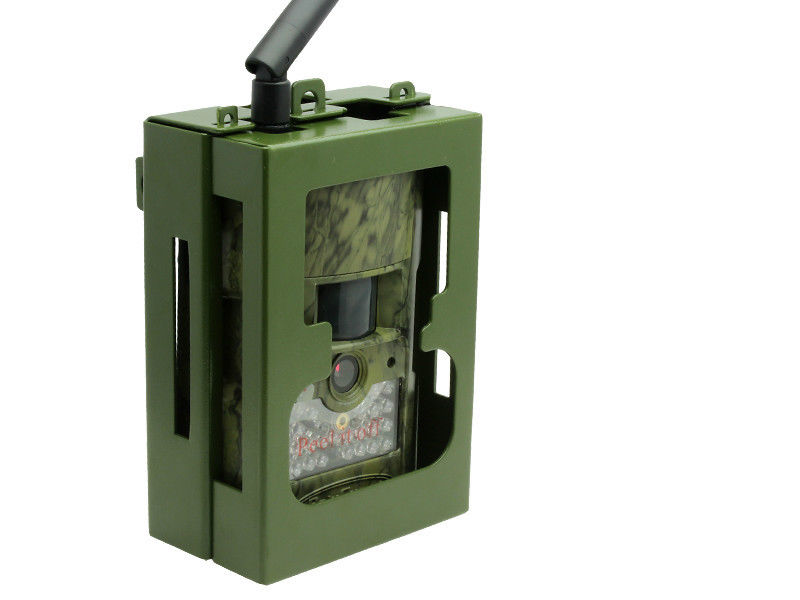

1X Security Metal Box

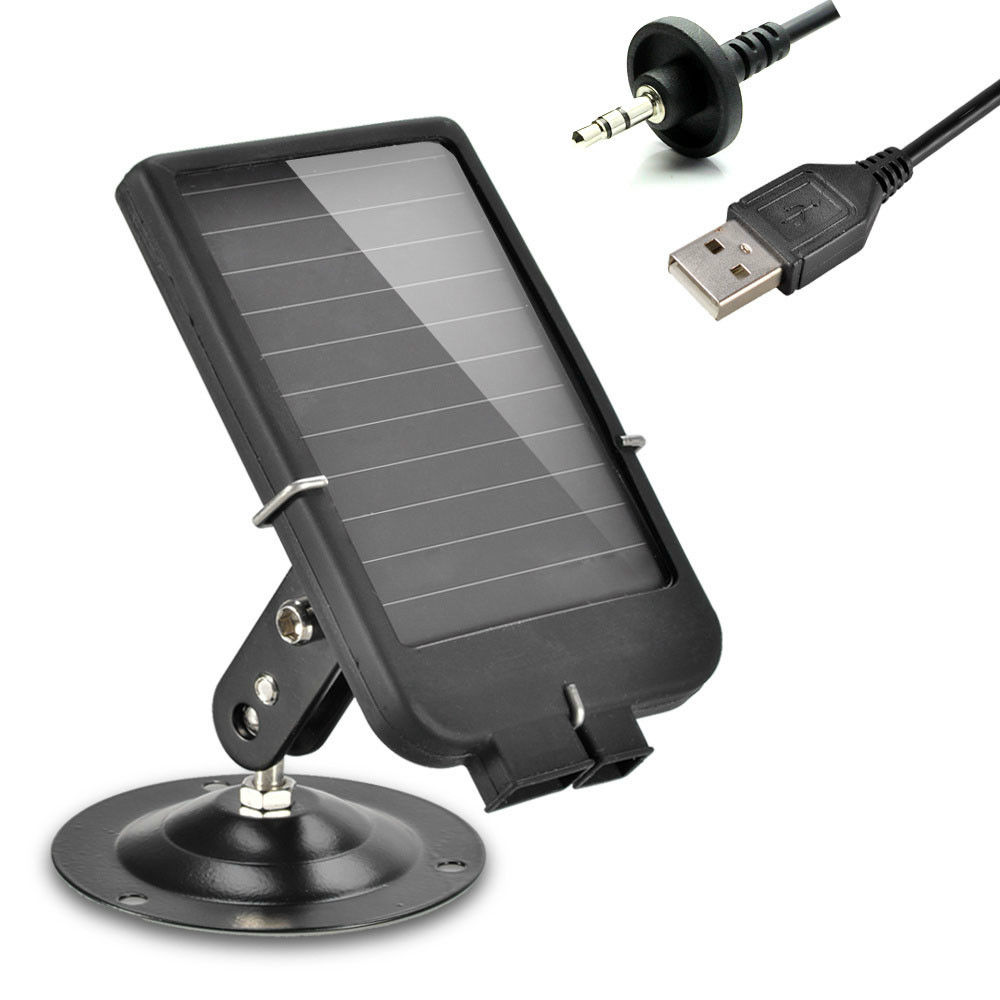

1X Solar Panel
pasting

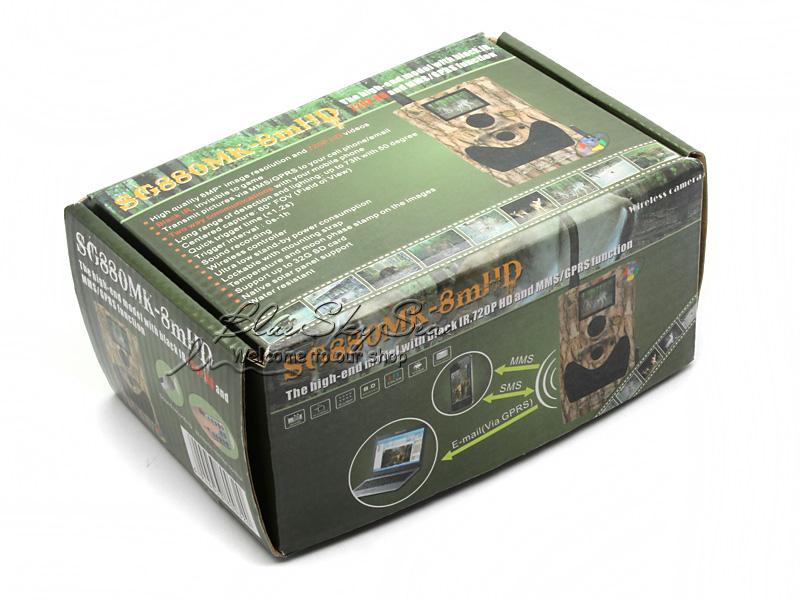

We sent the camera with original Package

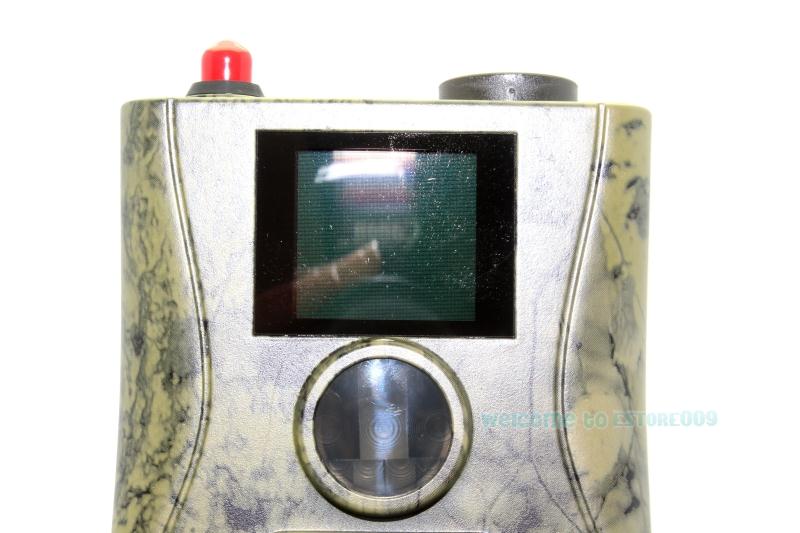

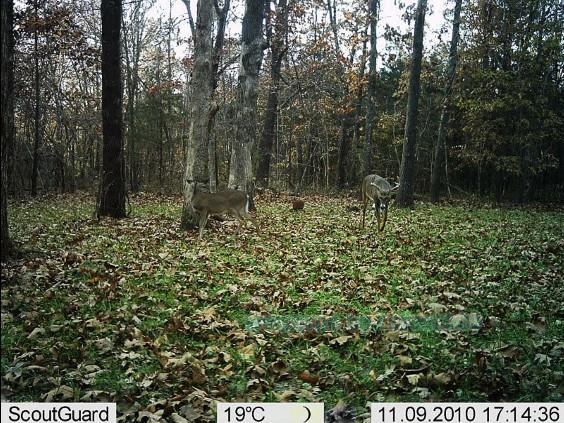

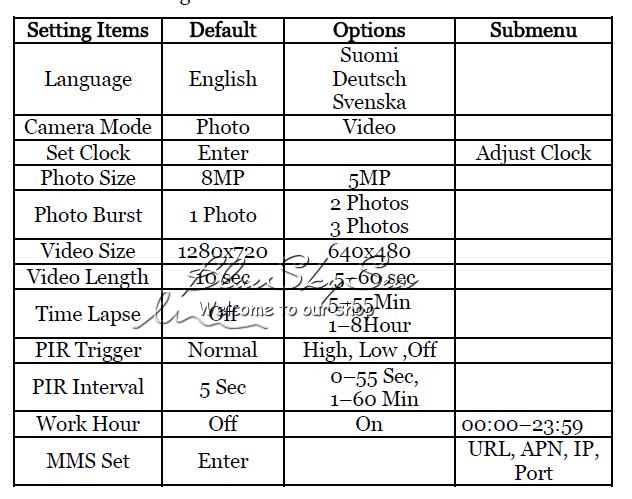

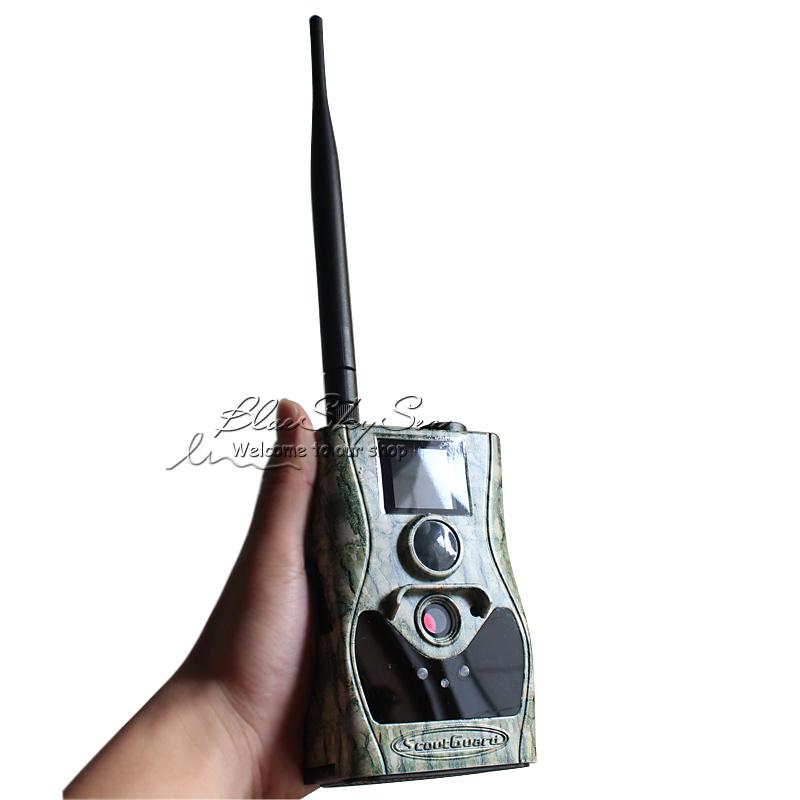

More Real operation photos from the camera

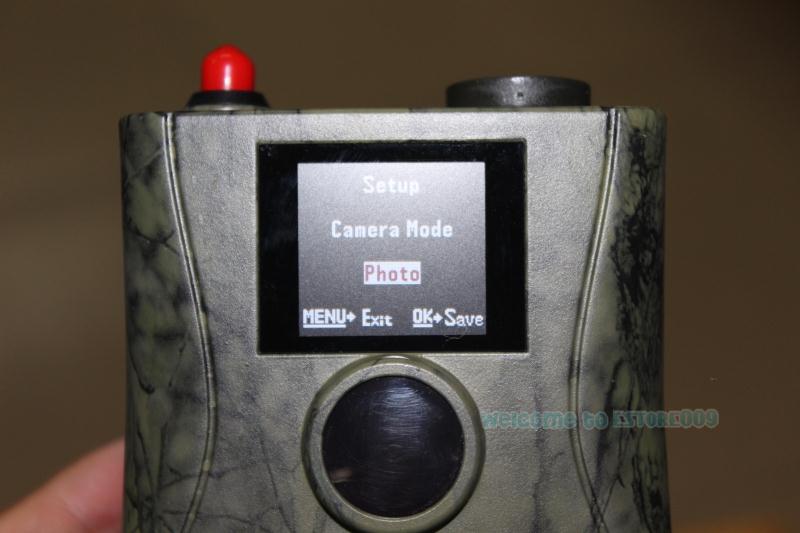

Camera Mode

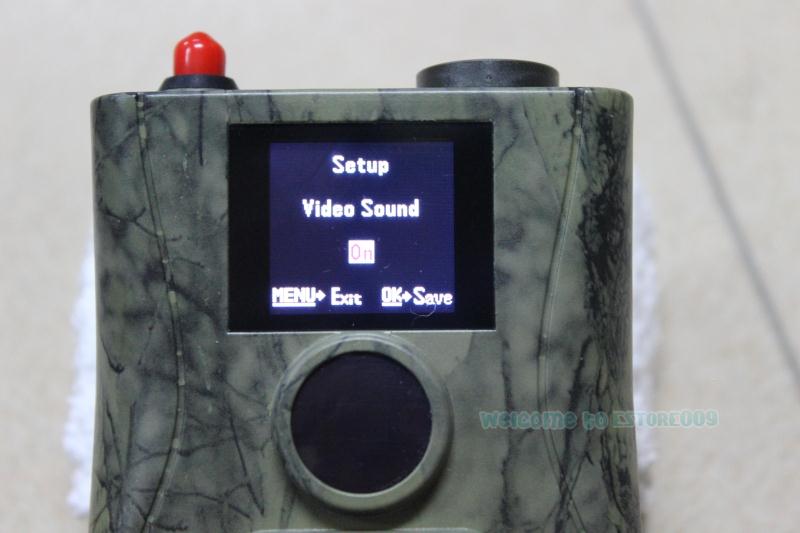

You can turn on/off the audio .

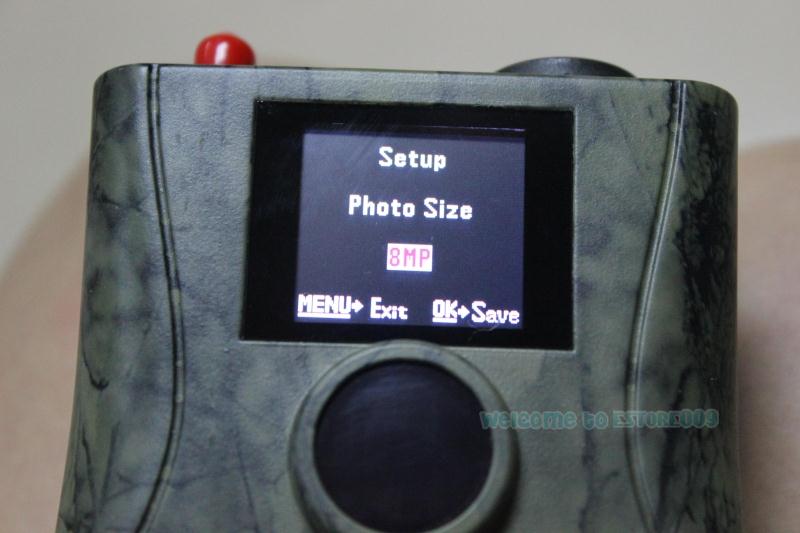

Max photo size is 8M.

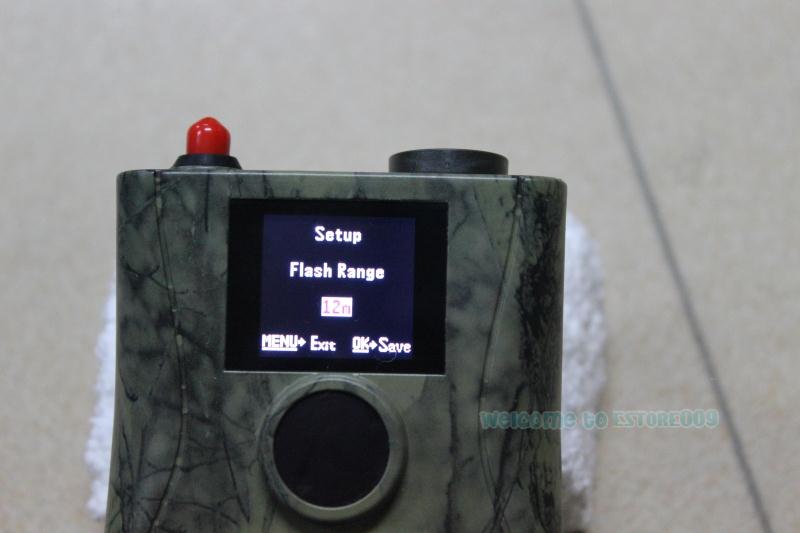

Max Flash Range is 12 Meters

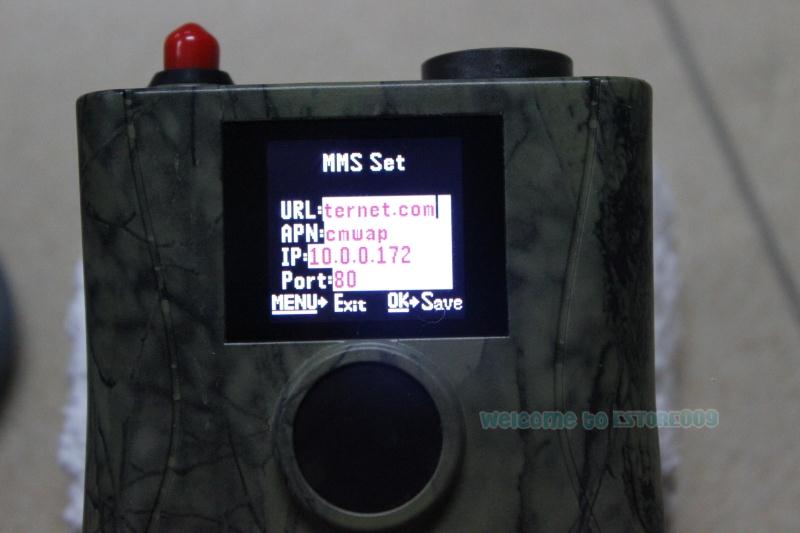

MMS Set

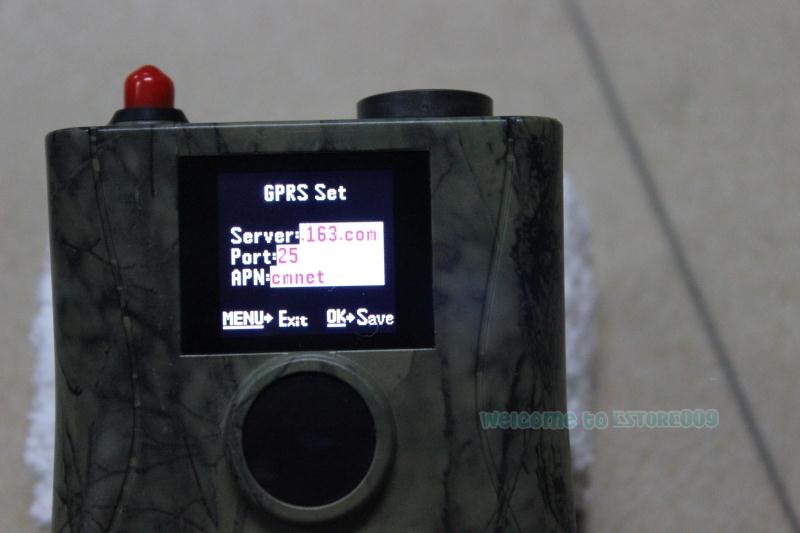

GPRS Set
Frequently Asked Questions
1. I am so confused with the settings on SG880M-12M , could you please clarify?
SG582M use the SIM card and requires some parameter to be set up correctly in order to make it work.
You can either change the settings via remote or you can edit the profile.ini file on SD card which is the best way to do so. Please enter your phone number with no dashes (EX: 5551234567)
ATT SG880 Settings:
for SG880M MMS application
[MMS Setting]
URL=http:// mmsc dot cingular dot com
APN=wap.cingular
IP=066.209.11.32
Port=80
Account=wap at cingulargprs dot com
Password=CINGULAR1
[Address]
PhoneNum1=
PhoneNum2=
PhoneNum3=
PhoneNum4=
Email1=
Email2=
Email3=
Email4=
T-Mobile SG582 Settings:
for SG552M MMS application
[MMS Setting]
URL=http:// 216 dot 155 dot 174 dot 84/servlets/mms
APN=wap.voicestream.com
IP=216.155.165.050
Port=8080
Account=
Password=
[Address]
PhoneNum1=
PhoneNum2=
PhoneNum3=
PhoneNum4=
Email1=
Email2=
Email3=
Email4=
2. I put the SIM card in my camera and I can see the singal bar but also see the sim card icon with a x inside. What should I do?
It may be the SKU number the carrier give to you for your SIM card is not correct. You can call your carrier and ask them to change the SKU for your SIM card. For example, in Atlanta, GA area with AT&T network, you should have MN21 SKU associate with your SIM card.
3. Will this camera work with any wireless network/carrier?
NO, It does not support CDMA or Non-Sim card network. Also, even with the SIM card carrier, the SIM card size need to be the standard size (15mm by 25 mm), micro SIM card (12mm by 15 mm) for 4 or will not work.
4.What is the filter that moves in front of the lens sometimes?
The red O-ring in front of the lens is an IR-filter, it`s designed to move around depending on your shooting time. When the cam is powered up, the lens will move into position. When power is shut off, it relaxes. For daytime shooting, the filter will be in front of the lens to filter off the IR light which shall interfere your image otherwise (all commercial digital cameras have such a filter fixed in front of the lens); for nighttime shooting, the IR filter will be moved away from the lens to allow IR light pass through to give you the B&W pictures. |
