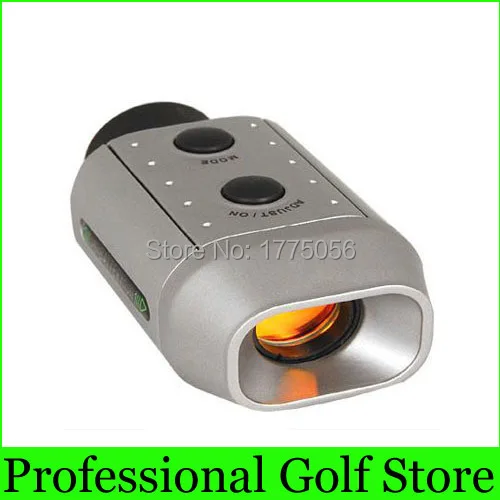

Product Name:Golf electronic rangefinder
Product details:
You like to play golf? Outdoor activities do you like ? Please look at this just listed small digital distance measuring instrument / Golf observation instrument ! ! !
She is also the perfect gift can be oh ! ! !
Designed specifically for golf , accurate measurement of the distance between the players and holes .
A feature
This is a new invention with a precision optical and digital techniques to measure the distance of golf observation instrument , this is a very safe distance from the test device , without any form of security of energy radiation , the measurement of the activities from the human body without any damage to the and destruction.
Twenty-two kinds of functions
1.GREEN MODE ( lawn function )
This feature is specially designed for people who play golf , you can easily get your distance between the holes .
2.GENERAL MODE ( general features )
This function is suitable for ordinary circumstances , you first enter the height of the object in, you can measure your distance between the object and the target .
Three part name
1 switch / adjustment key
(2) Function keys
3 Battery cast into parts (battery not included )
4 peephole
5 lens
Main parameters :
Objective : 28mm;
Eyepieces : 16mm;
Resolution: 13 ” ;
EnlargeMagnification: 7 times ;
Farthest test distance : 930 yards ( one yard = 0.914 m )
Angle : 7.8 °;
Power supply: two cr2032 button battery
Dimension : 90mm × 50mm × 38mm;
IV use
1 Press the switch / button to adjust the instrument startup , security features will go directly to the lawn .
(2) for use in playing golf :
In yards ruler height ( 2.6 yards ) is entered into the.
( 1 ) The bottom line of the screen with lawn horizontal alignment.
( 2 ) Press the switch / button to adjust the position of the scanning line up the top of the flagpole transferred golf .
( 3 ) number will appear in the top of the screen , indicating the distance between you and the hole .
3 for use in special target distance measurement
Press the function key instrument enters the general functional status , the screen will display a three-digit number and the decimal point .
If you want to check the distance between you and the target , make it the height of the input.
( 1 ) Press the switch / adjust key to enter the general functional status , the screen will display a three-digit number and the decimal point .
( 2 ) Press the function key to move to ten digits, and then press the switch / adjust keys to enter numbers , the range is 0-9 .
( 3 ) Repeat the above steps , you set the number as well as a decimal number .
( 4 ) Press the function key input process more than the end .
( 5 ) based on your height , the screen will show you the minimum distance can be measured .
( 6 ) the bottom line of the screen, and the target of the lowest line alignment.
( 7 ) Press the switch / button to adjust the position of the scan lines transferred to the target up to the top.
( 8 ) number will appear on the top of the screen , indicating the distance between you and the target .
V. Notes
1 shows the distance and the height of the input unit is the same.
(2) After the end of the operation 60 seconds auto power switch.
3 Note ! Please do not use this product visually observe the sun , this will be your cause permanent eye damage.
