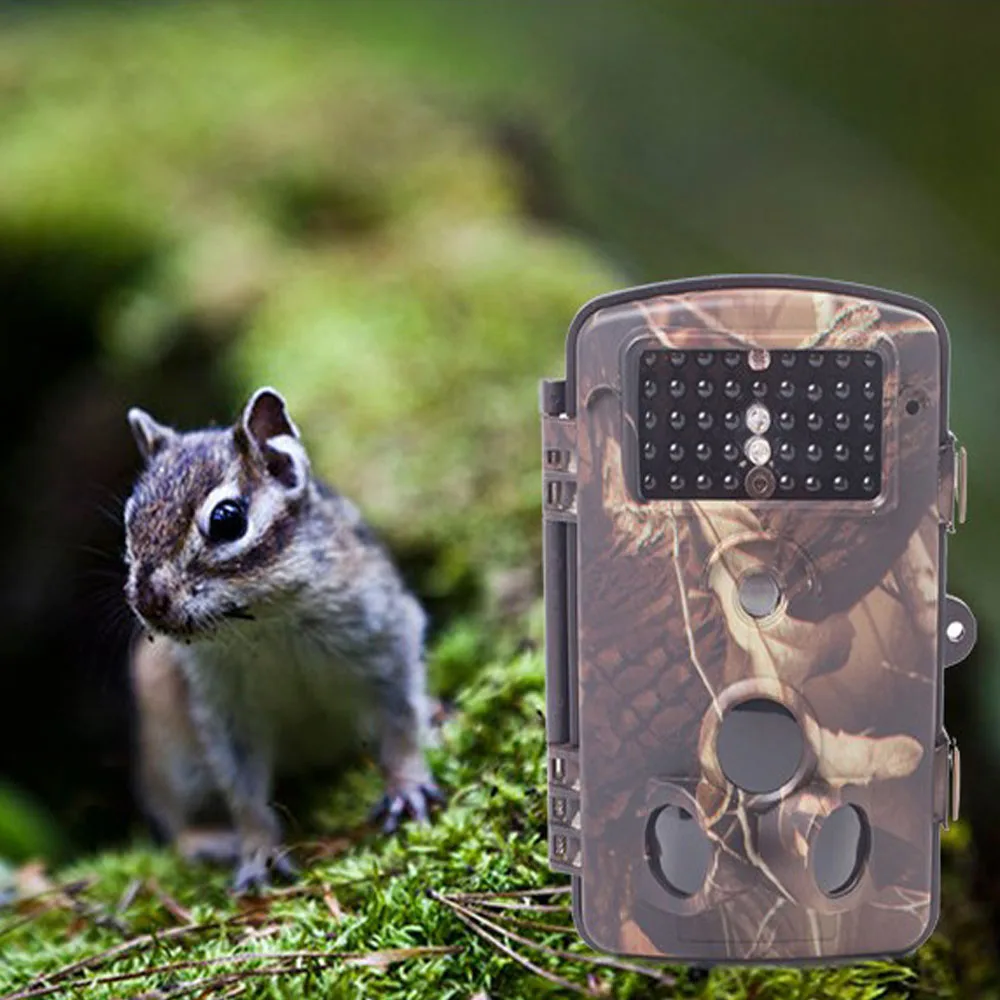

2016 New Waterproof MMS HD Digital Infrared Hunting Camera/Scouting Trail Camera with 41pcs IR LEDs

Parameter

Settings(Bold=default)

Description

Mode

Camera

Video

Select whether still photos or video are taken.

Capture Mode

Single

Camera +video

3 pictures

In Camera+Video mode,it can first take photo and then shoot video afterward.Select the mumber of photos taken in sequence per trigger in camrea mode.

Please also refer to the Interval parameter.

Resolution

4000*3000 12MP

3456*2592 10MP

3264*2448 8 MP

2592*1944 5 MP

Select desired resolutions for still photos from 5 to 12 megapixels. Higher resolution produces better quality photos, but creates larger files that take more of the SD card capacity.

Movie Size

HD 1280*720

D1 720*480

640 640*480

320 320*240

Select video resolution(pixels per frame) . Higher resolution produces better quality videos, but creates larger files that take more of the SD card capacity.

Video Time

15 sec

30 sec

60 sec

120 sec

Select desired video time for AVI format from 15S to 120S

PIR Sensitivity

High

Middle

Low

Select the sensitivity of the PIR sensor.The high setting suits indoors and environments with little interference,while the NORMAL/Low suits outdoors and environments with more interference.Temperature also affects the sensitivity.The High setting is suitable when the ambient temperature is warm,and the Low lsetting is helpful in cold weather.

Timer

OFF

ON

Select ON if you only want the camera to work within a specified time period every day.For instance ,if the starting time is set at 19:00 and the ending time at 7:00, the camera will function from 19:00 the current day to 7:00 the next day . Outside the time period the camera will not be triggered or take photos/ videos.

Serial

OFF

ON

Select ON to assign a serial number to each camera you have.You can use the combination of 4 digits and/or alphabets to record the location in the photos(e.g. DK1 for Park).This helps multi-camera users identify the location when reviewing the phots.

Time lapse

OFF

ON

If set ON, the camera will automatically take photos/videos according to the set interval,regardless of whether the PIR sensor has detected any game.This is helpful when observing cold-blooded animals like snakes,or the process of flowering,etc.

Side PIR

OFF

ON

The default setting is ON. The two side prep PIR sensors provide wider sensing angle and detect more potential triggers.In some situations ,you only want to monitor a narrow spot.Too many irrelevant triggers by the side sensors outside of that spot will keep the camera on and off, chich drains the battery power rapidly.Or in some other situations you have difficulty removing the interfering branches,or avoiding the sunlight.If so,you have the option on turn off the side sensors.

Delay time

1s,

optional from 1s to 1H59M59S

Select the shortest length of time that the camera will wait until it responds to any subsequent triggers from the PIR sensor after a game is first detected. During the selected interval, the camera will not take pictures/videos. This prevents the SD card from filling up with too many redundant images.

IR-LED

Day

Night

24H

You can choose IR-LED work time .

TV OUT

NTSC

PAL

You can choose TV systme NTSC or PAL .

Date Stamp

OFF

Date&Time

Select ON if you want the date&time ,temperature and moon phase can be imprinted in every photo .

Language

English

Chinese

Deutsch

Suomen

Francais

Svenska

You can choose language which you need .

Date & Time

MM/DD/YYYY

Set up date and time

Password Set

OFF,

On

Set up a password to protect your camera from unauthorized users.
