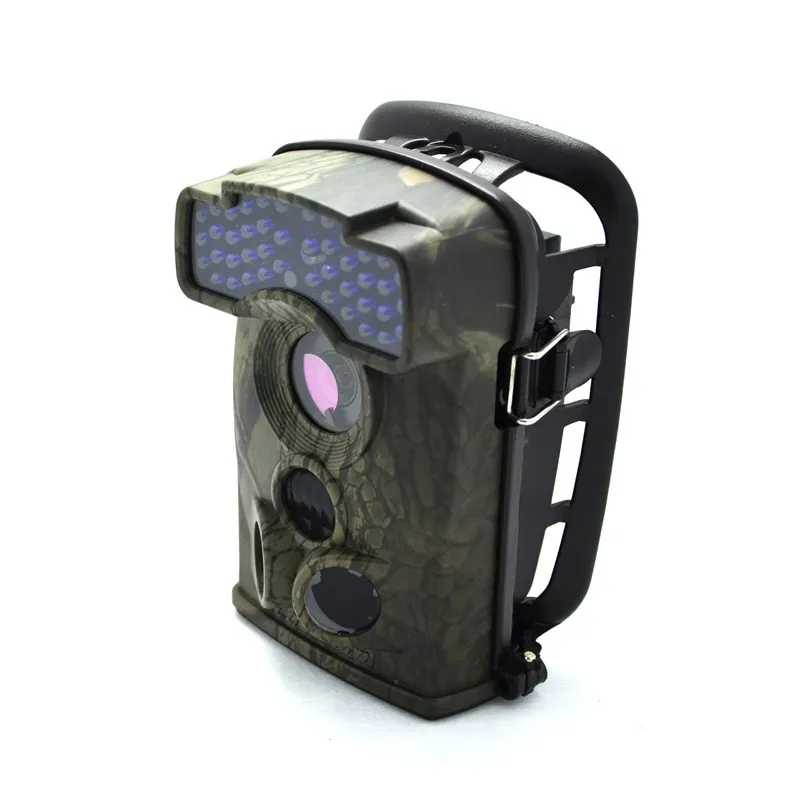

2016 New Ltl Acorn 5310WMC hunting trail camera 940NM 44LEDs 720P IR infrared trail camera Wide angle 100
Hot Spots:
- 12M pixel high-quality resolution
- Infrared night vision No-glow 940nm LEDs for flash range as far as 30 feet
- Cam + Video mode enables camera to take both picture and video at every trigger event
- Quick trigger time (0.8 second)
- Lockable and password protected
The Ltl Acorn 5310WMC is the third generation of our Ltl acorn scouting camera. With its highly sensitive Passive Infra-Red (PIR) sensor the camera detects the sudden change of ambient temperature caused by moving game in a region of interest (ROI), triggers to take pictures/videos.
Features:
Programmable 5 or 12 megapixel high-quality resolution
No-glow infrared 940nm LEDs flash range as far as 30 feet.
In Cam + Video mode, camera takes both picture and video at every trigger event.
Ultra low standby power consumption. Extremely long in-field life (in standby mode, up to 6 months with 8xAA batteries)
Unique side Prep Sensor design provides wider sensing angle and enhances camera’s response speed
Perform in the most extreme temperatures from -22°F to 158°F
Compact size (5 ½ x 3 ½ x 2 ½ inches). Perfect designed to deploy covertly impressively quick trigger time (0.8 second)
When timer setting on, the camera can be programmable to only work in specified period every day. This feature can work together with time lapse feature.
Backpack-looking tree grabber makes mounting and aiming a snap photos.
Built-in 2.25 inch TFT color display to review images and videos
Date, time, temperature and moon phase can be stamped in the pictures.
Lockable and password protected
Under time lapse setting, the camera automatically and constantly takes pictures/videos at specified interval. This is very useful when observing plants flowering, birds building nests or when monitoring unattended properties such as parking lots.
Specification:
|
Image Sensor
|
5 Megapixels Color CMOS
|
|
Memory
|
SD Card 8MB~16GB
|
|
Lens
|
F=3.1mm, FOV=55°, Auto IR-Cut
|
|
Pixel Size
|
2560×1920
|
|
IR Flash
|
30feet/10meters
|
|
LCD Screen
|
48×35.69mm(2.36”); 480(RGB)x234DOT; 16.7M color
|
|
Picture Size
|
5MP/12MP=2560×1920/4000×3000
|
|
Video Size
|
640×480(20fps); 320×240(30fps)
|
|
Operation Mode
|
Day/Night
|
|
PIR Sensor sight angle
|
100 degrees, each lens covers 10 degrees
|
|
PIR Sensitivity
|
PIR with 3 sensitivity levels: High/Normal/Low
|
|
Trigger time
|
0.6 second(when using the 2G SD card)
|
|
Triggering interval
|
1 second ~ 60mins Programmable
|
|
Operation Temperature
|
-30 – +70°C/-22 – +158°F
|
|
Shooting Numbers
|
1~3
|
|
Camera + Video
|
First take picture and then take video
|
|
Playback Zoom in
|
1 ~ 16 times
|
|
Timer
|
On/Off time lapse programmable
|
|
Password
|
4 Protection Numbers
|
|
Device Serial No.
|
4 digits and 26 alphabets set by yourself
|
|
Periodic Shot
|
1Second ~ 24Hours
|
|
Power Supply
|
4xAA battery; expandable to 8xAA
|
|
Stand-by Current
|
0.4mA
|
|
Power Consumption
|
150mA(+650mA when IR LED lights up)
|
|
Low Battery Alert
|
4.2~4.3V
|
|
Interface
|
TV out(NTSC); USB; SD Card Slot; 6V DC External
|
|
Mounting
|
Belt, Tripod Nail
|
|
Water Proof
|
IP54
|
|
Certificate
|
FCC, CE, RoHS
|
Package Includes:
- 1 X 5310A Digital Camera
- 1 X Additional Battery Box
- 1 X TV AV IN Cable
- 1 X USB Cable
- 1 X Strap
- 1 X Manual
- 1 X Warranty car
