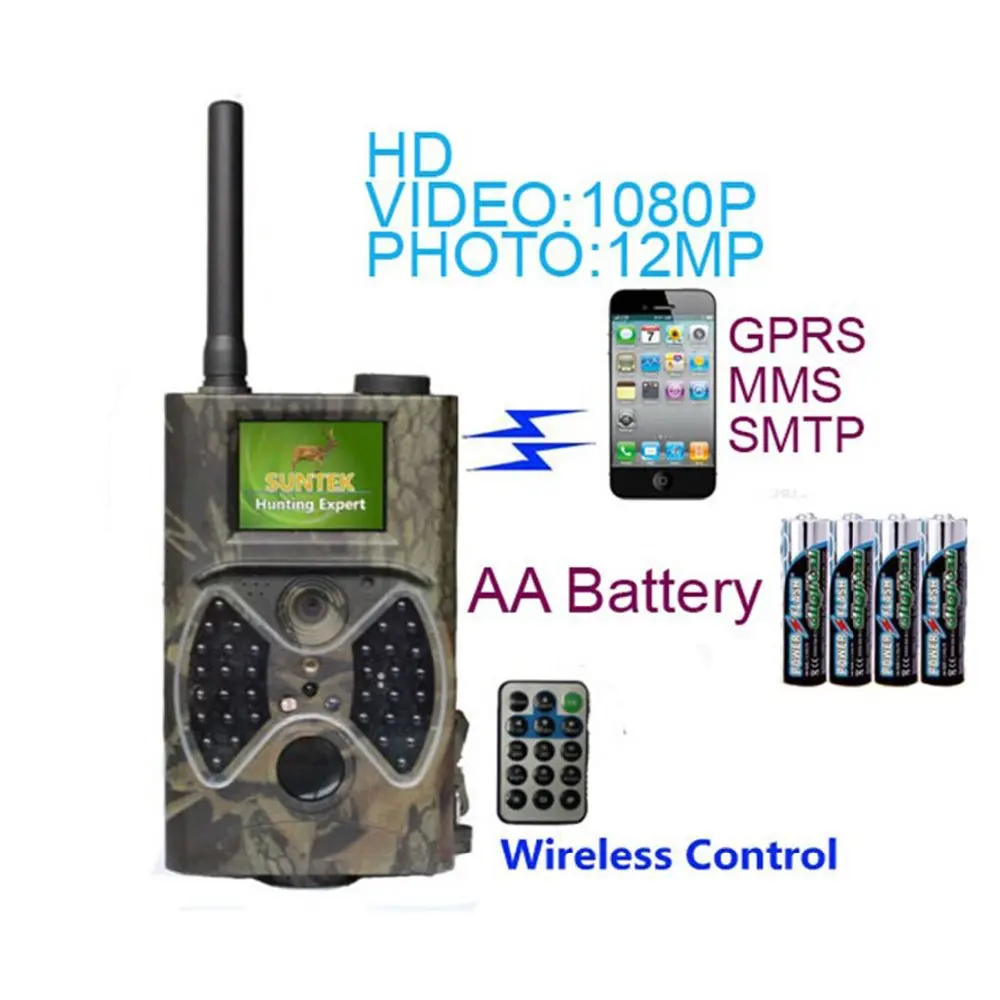

New HD GPRS/MMS Digital Infrared Trail Camera 2.0’ LCD 12 Megapixels IR Hunting
Hot Spots:
- 12 megapixel infrared digital game camera
- Night range up to 65ft
- IR triggered trail camera with MMS function
- 2.0 inch colorful LCD display
- 36 Black LED lamps makes the product more concealment
- Captures high quality pictures and records HD video clips 1080P
This camera, a digital trail camera with MMS function, is a surveillance camera working automatically. It can be triggered at once by any movement of human (or animals) in a certain region of interested (ROI) monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 12M pixels) or records 1080p HD video clips (WVGA or QVGA).
At sunrise the unit begins to take color photos and video until there is insufficient light (dusk) when it begins to take infrared (monochrome) photos and video.
It is easy to use, there is a 2.0 inch colorful LCD display on camera, and it supports MMS/SMTP/SMS/E-mail via GPRS Network. It is resistant against water and snow for outside uses.
Camera Body Interface
The camera has the following I/O interfaces: USB connector, SD-card slot, SIM-card slot, TV output and external DC power connector.
Take a few moments to familiarize yourself following the camera controls and displays. It is helpful to bookmark this section and refer to it as you read through the rest of the manual.
The remote control is an input device of the camera and is primarily used for customer settings and password input. This is an infrared type wireless remote control. The maximum remote distance is 9 meters. There are fifteen buttons on the remote control. (Note: Remote control is inside of the camera)
Specification:
|
Image Sensor Type(True Megapixels)
|
12 Megapixels Color CMOS
|
|
Memory
|
SD Card 8MB~32GB
|
|
Lens
|
F=3.1mm, FOV(Field of View)=60°
|
|
PIR Sensing Distance
|
65feet/20m
|
|
Number of IR LED
|
36 LEDs Black
|
|
TFT Display Screen
|
2.0 inch
|
|
IR Filter
|
Full Automatic IR Filter
|
|
Selectable Image Resolution
|
12MP/8MP/5MP
|
|
Video Resolution
|
1080P(25fps), 720P(25fps), VGA(30fps)
|
|
PIR Sensor sight angle
|
100 degrees
|
|
PIR Sensitivity
|
3 sensitivity levels: High/Normal/Low
|
|
Trigger speed
|
0.7 second
|
|
Triggering interval
|
1 second ~ 60mins (default 5 sec)
|
|
Operation Temperature
|
-30 – +70C/-22 – +158C
|
|
Multiple Frame
|
1/3/6/9
|
|
File Format
|
JPEG/AVI
|
|
Periodic Shot
|
1Second ~ 24Hours
|
|
Power Supply
|
8xAA or 4xAA battery
|
|
Stand-by Current
|
0.2mA
|
|
Exposure
|
auto
|
|
Date Time Imprint
|
Yes
|
|
Moon Phase Imprint
|
yes
|
|
MMS/Email/SMS Support
|
Support
|
|
Device Serial No
|
4 Digits and 26 alphabet set by yourself
|
|
Interface
|
TV out(NTSC/PAL); USB; SD Card Holder; 6V DC External
|
|
Fix Method
|
Belt, Tripod Nail
|
|
Camera Socket
|
Yes
|
|
Water Proof
|
IP54
|
|
Dimensions
|
145x80x55mm
|
|
Weight
|
About 0.32Kg without battery
|
|
Security Authentication
|
FCC, CE, RoHS
|
Package Includes:
- 1 X Digital Camera
- 1 X Wireless Remote Control
- 1 X Antenna
- 1 X USB Cable
- 1 X TV Cable
- 1 X Belt
- 1 X CD Manual
