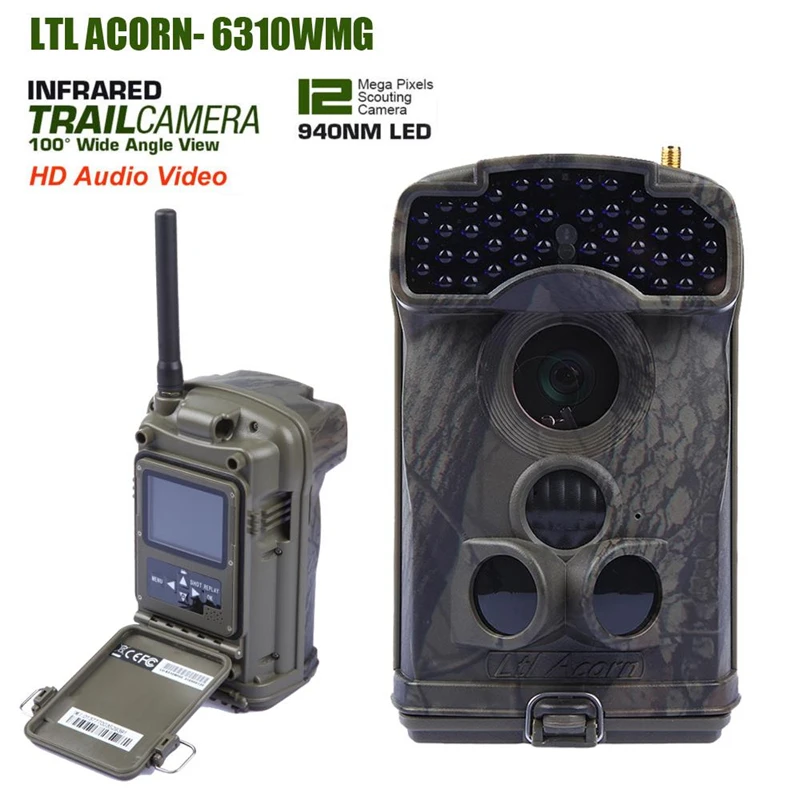

LTL ACORN 6310WMG IR 940NM Trail camera MMS Hunting camera gprs Wide Lens Infrared game Camera IP54

Specification

Image Sensor

5 Mega Pixel color SMOS

Video Resolution

1440×1080: 15 fps;
1280×720: 30fps;
640×480: 30fps;

Picture Resolution

5MP/12MP/2MP = 2560X1920/4000X3000/1600X1200;

MMS Status

VGA = 640×480; OFF Programmable

MMS Numbers

“0” = Unlimited; 0 ~ 99/Day

MMS Phone NO.

1 ~ 3 Phone Numbers

MMS Email

1 ~ 3 Email address

Lens

F=3.1; FOV=100°; Auto IR-Cut-Remove(at night)

IR LED

850nM:75Feet/23Meters; 940nM:59Feet/18 Meters

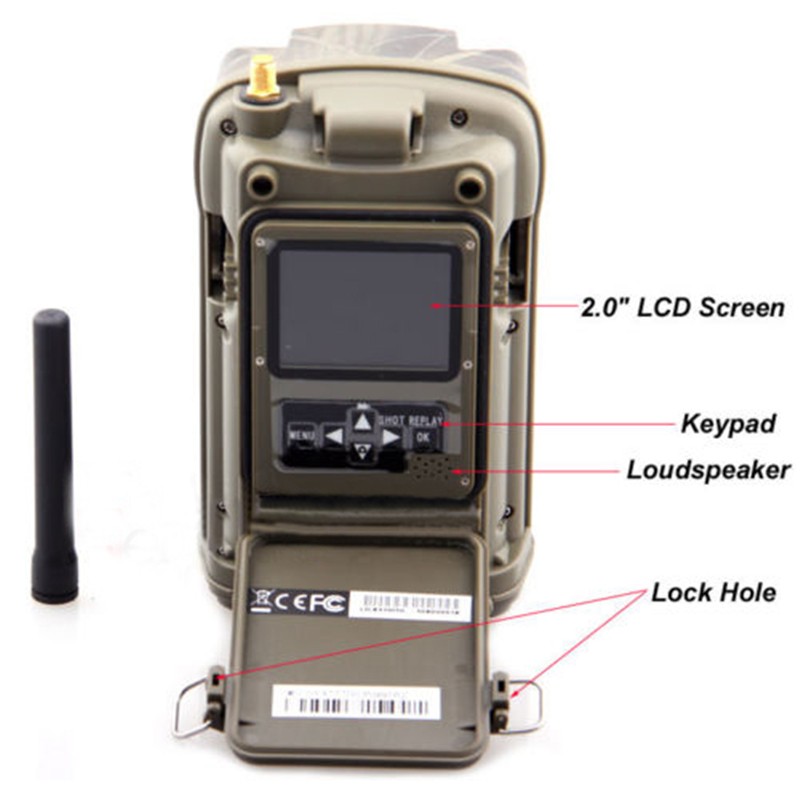

TFT Display Screen

40.8×30.6mm (2.0″);960(RGB)*240DOT; 16.7M color

Memory

SD HC MAX 16GB

PIR Sensitivity

PIR with 3 sensitivity level: High/Normal/Low

PIR Sensing Distance

65ft/20m(Below 77°F/25°C at the Normal Level)

Prep PIR Sensing Angle

Left and right light beams form an angle

standard PIR sensor range

2pcs angle is 100°, Each infrared range is 10°

Main PIR Sensing Angle

35°

Operation

Day/ Night

Triggering Interval

0 second-60 minutes, programmable

Shooting Number

1-3, programmable

Video Length

1-60second, programmable

Battery

12×AA (8xAA build in Camera, 4xAA come with extra battery box)

stand-by time

4~6 months (4xAA~12XAA)

Operation Temperature

-30 ~+70°C/-22~+158°F

Operation Humidity

5%-95%

Waterproof

IP54

Interface

TV out (NTSC); USB; SD Card Slot; 6V DC External

Certificate

FCC & CE & ROHS

Application

Hunting Camera, trail camera, scouting camera, Security Camera

Stardard Packing

12 pcs / Master Carton

G.W

7 kg /ctn ( 12 pcs)

Warranty

one year
