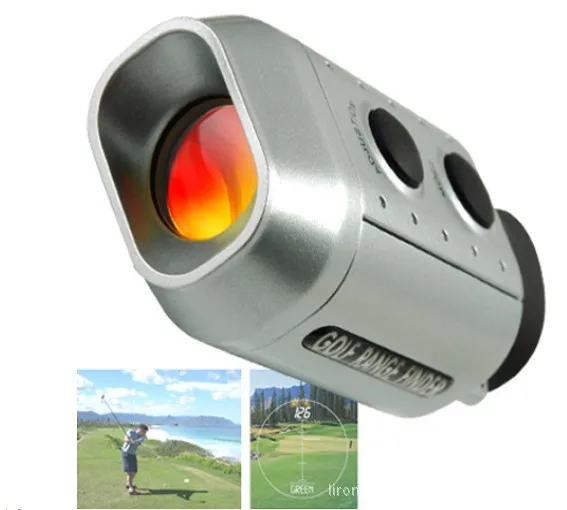

Name: Golf electronic distance measuring instrument Golf telescope miniature digital measuring instrument
Purpose: to accurately measure the distance between the player and the ball hole designed for golf
Main parameter index:Objective: 28mm
Eyepiece: 16mm
Resolution: 13 “
enlargeRate: 7 times
Test distance:50-920(1 yards = 0.914 meters)
Angle of view: 7.8
Power supply: two CR2032 button batteries
Volume: 38mm * 50mm * 90mm
Measurement accuracy: + / – 2 yards
Display mode: LCD display read out
Weight: 0.08 Kgs
Function usage:MODE GREEN (lawn function)This feature is designed for golf
Press the switch / adjustment key to enable the instrument to start, will directly enter the lawn function. The height of the scale (2.6 yards) of the code is entered.
(1) align the bottom line of the screen with the horizontal line of the lawn.
(2) according to the key switch / adjust the scan line position up to the top of the flagpole golf.
(3) the number will be at the top of the screen, indicating the distance between you and the hole.
Function two usage: MODE GENERAL (general function) this function is suitable for the general situation
Press function key to enter the general function of the state, will be the target of a high degree of input.
(1) according to the switch / adjustment button to enter the general state of function, the screen will display the three digit and decimal point one digit.
(2) press the function key to move to the ten digit, then press the switch / adjust the key to enter the number, range is 0 to 9.
(3) repeat the above steps, set the number of digits and one digit after the decimal point.
(4) press the function key to end the input process.
(5) according to the height of your input, the screen will show you can measure the minimum distance.
(6) align the lowest line of the screen with the minimum line of the target.
(7) to adjust the position of the scanning line to the top of the target according to the switch / adjustment key.
(8) the number will appear at the top of the screen, indicating the distance between you and the object.
Matters needing attention:
1 shows that the distance is consistent with the height of the input unit.
2 operation after the end of 60 seconds after the power will automatically switch.
3 note! Please do not use this product to observe the sun, this will cause permanent damage to your eyes.
