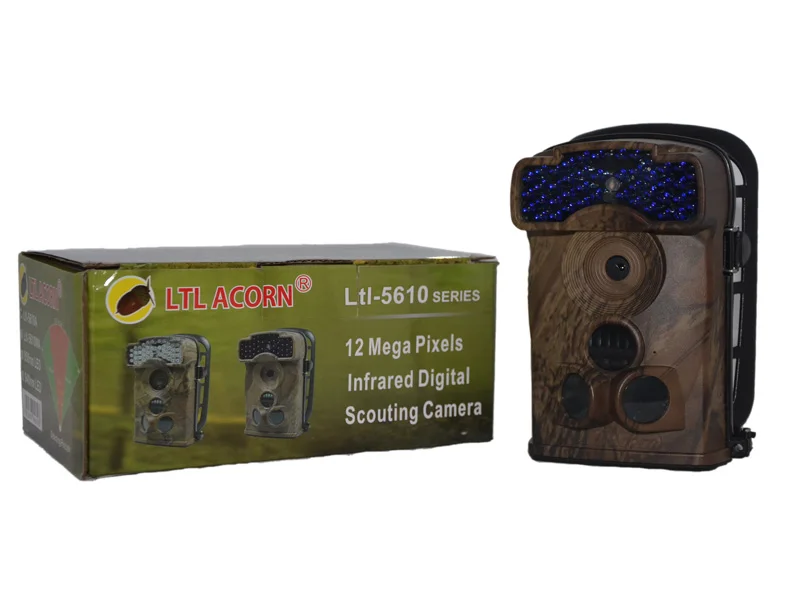

2016 New high quality Ltl acorn 5610A 940NM 12MP infrared trail camera IP54 hunt camera waterproof ,game camera Item Parameters Ltl- 5610A
Image Sensor 5 Mega Pixels Color CMOS
Lens FOV=55°; Auto IR-Cut Yes N/ A
IR Flash 850nm LED 30 meters
940nm LED (black flash) 18 meters
LCD Screen 2.36 TFT LCD; 16.7M Color
Operation Keypad 6 Keys
Memory SD Card (8MB~ 32GB)
Picture Size 5MP (2592×1944), 12MP (4000×3000)
Video Size 1920×1080 (15fps), 1280×720 (30fps),
640×480 (30fps), 320×240 (30fps).
With audio record.
PIR Sensitivity High/ Normal/ Low/ OffPIR Sensing
Distance 20 Meters (below 77°F/ 25°C at the Normal level)
Prep PIR Sensing Angle Left and right light beams form an angle of 100°; Each lens covers 10° Main PIR Sensing Angle 35°
Operation Mode Day/ Night
Trigger Time 0.8 Seconds
Trigger Interval 0 Sec~ 60 Mins;
Programmable Shooting Numbers 1~ 3 Yes Yes
Video Length 1~ 60 Secs;
Programmable Camera + Video First take photo then video.
Playback Zoom In 1~ 4 Times
Time Stamp On/ Off; Including serial No., temperature, moon phase, date and time.
Timer1 On/ Off; Programmable; Accuracy error≤ 10s
Timer2 On/ Off; Programmable; Accuracy error≤ 10s
Password 4-digit Numbers (0~ 9)
Device Serial No. 4 digits and/ or alphabets (0~ 9, A~ Z);
Turn on the Serial No. setting, the picture/ video name would start with Serial No., LTL ACORN ® makes the file easy to be classified.
Time Lapse On/ Off; 0 Sec~ 23 Hrs 59 Mins 59 Secs; Programmable
Coordinates GPS Coordinates Input Recycle On/ Off;
Power Supply 4× AA; Expandable to 12× AA (with additional battery box)
External DC Power Supply Plug Size: 4.0mm× 1.7mm 6~ 12V (2~ 1A)
Stand-by Current 0.4mA Yes Yes
Stand- by Time 3~ 6 Months (4× AA~12× AA) Yes Yes
Auto Power Off Auto power off in 3 minutes if no keypad input.
Power Consumption 150mA (+ 650mA with 850nm LED lights on);
150mA (+ 700mA with 940nm LED lights on);
Low Battery Alert
Interface TV Out ; Micro USB; SD Card Slot; 6V DC Port
Mounting Strap; Tripod Yes Yes
Ingress Protection IP54
Operation Temperature -49°F (-45°C)~ 158°F (70°C)
Operation Humidity 5%~ 95% Yes Yes
Certificate FCC & CE & RoHS Yes Yes
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: ltl acorn
- Model Number: LTL5610A
- Item Parameters: Ltl- 5610A
- Image Sensor: 5 Mega Pixels Color CMOS
- Lens: FOV=55°; Auto IR-Cut Yes N/ A
- IR Flash: 850nm LED 30 meters/940nm LED 18 meters
- Picture Size: 5MP (2592*1944) 12MP (4000*3000)
- PIR Sensitivity: High/ Normal/ Low/ OffPIR Sensing
- Trigger Time: 0.8 Seconds
- Trigger Interval: 0 Sec~ 60 Mins
- Coordinates: GPS Coordinates Input Recycle On/ Off;
- Stand- by Time: 3~ 6 Months
